FE(Z6) Type CAPT-LOCKS
FE(Z6) Type CAPT-LOCKS
Range of product:
DIN:(CL14x55FE to CL50x80FE)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)

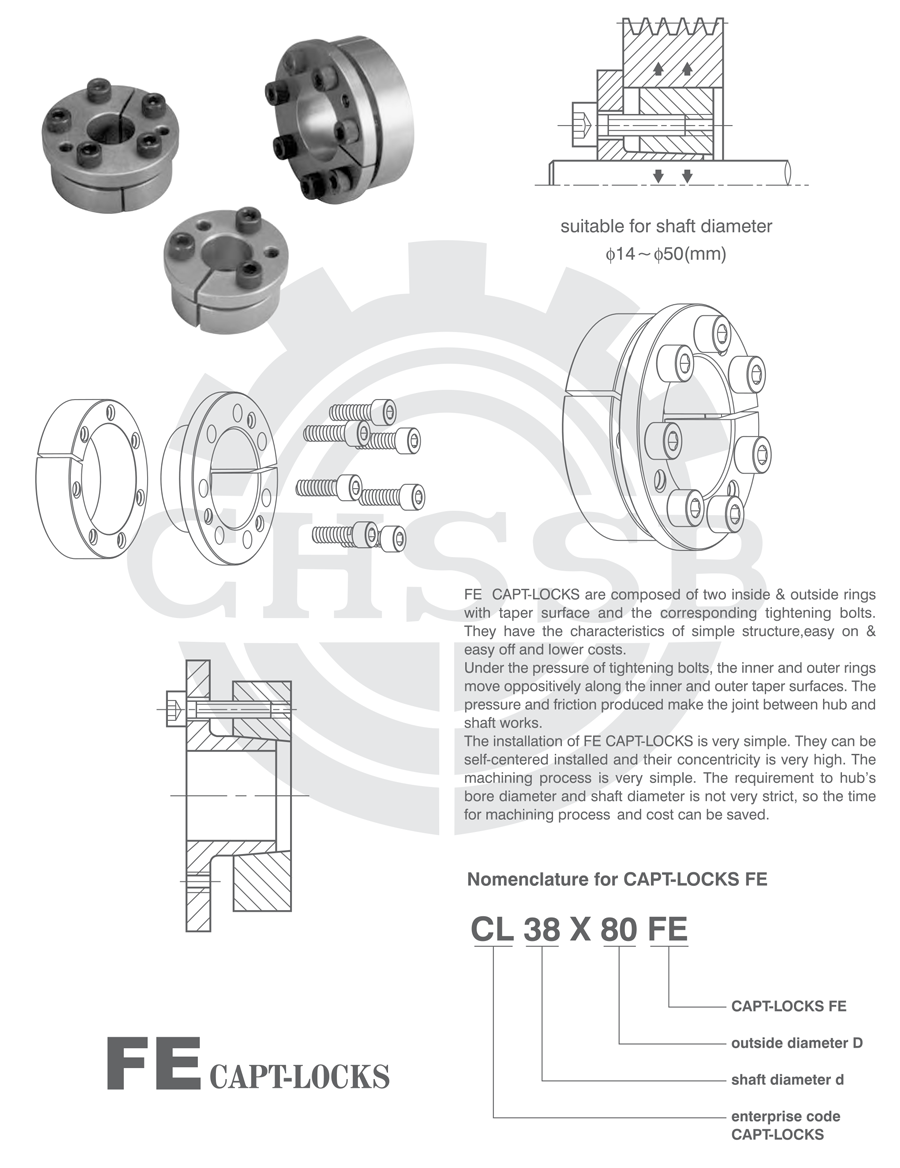

FE CAPT-LOCKS are composed of two inside & outside rings with taper surface and the corresponding tightening bolts.They have the characteristics of simple structure,easy on & easy off and lower costs.
Under the pressure of tightening bolts, the inner and outer rings move oppositively along the inner and outer taper surfaces. The pressure and friction produced make the joint between hub and shaft works.
The installation of FE CAPT-LOCKS is very simple. They can be self-centered installed and their concentricity is very high. The machining process is very simple. The requirement to hub's bore diameter and shaft diameter is not very strict, so the time for machining process and cost can be saved.
Standards | Series Type | SizeRange |
DIN | FE(Z6) | CL14x55FE to CL50x80FE |

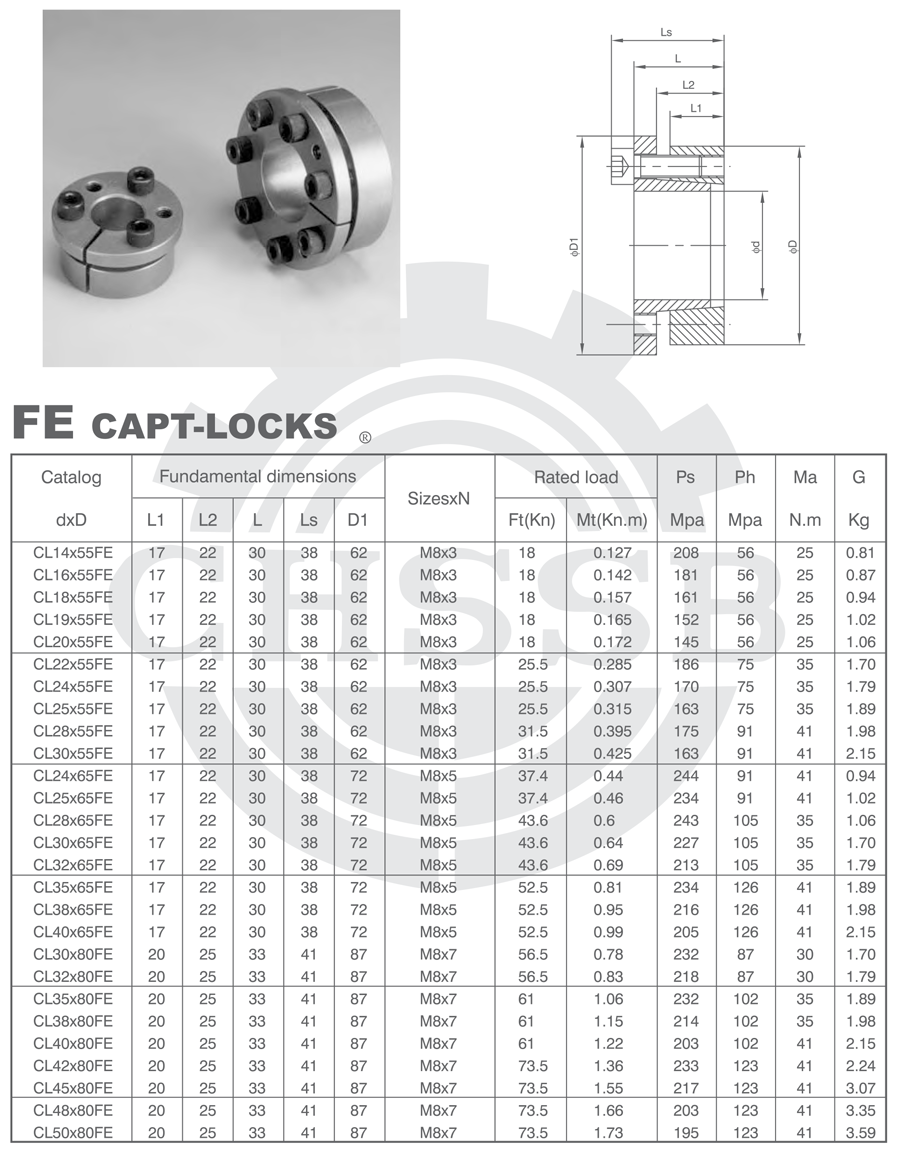

DIN Standard:
