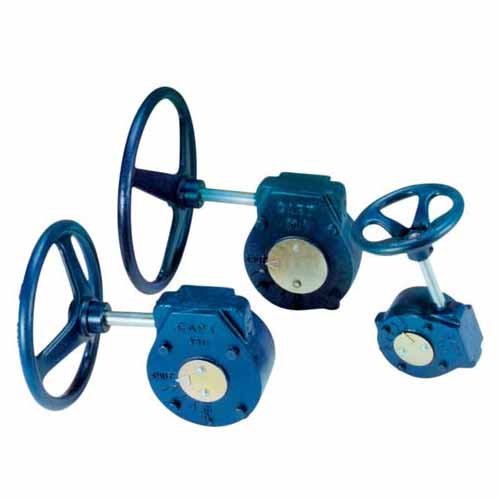

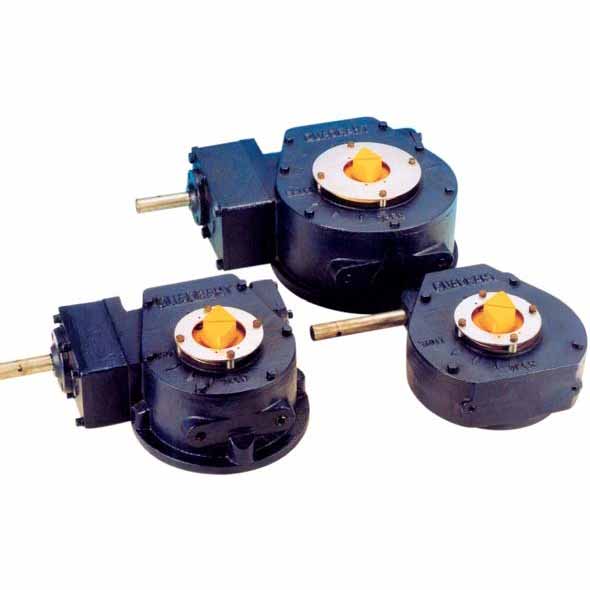

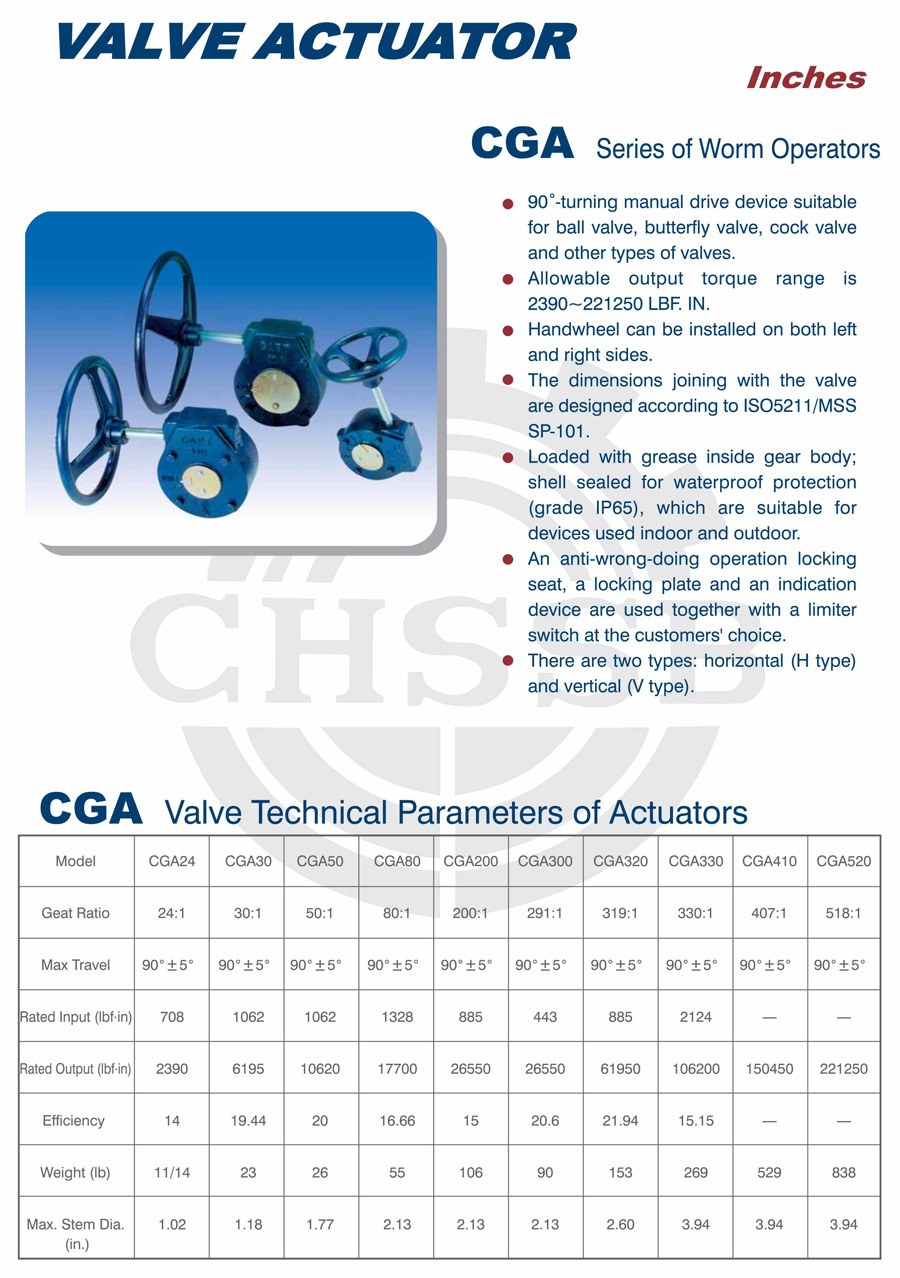

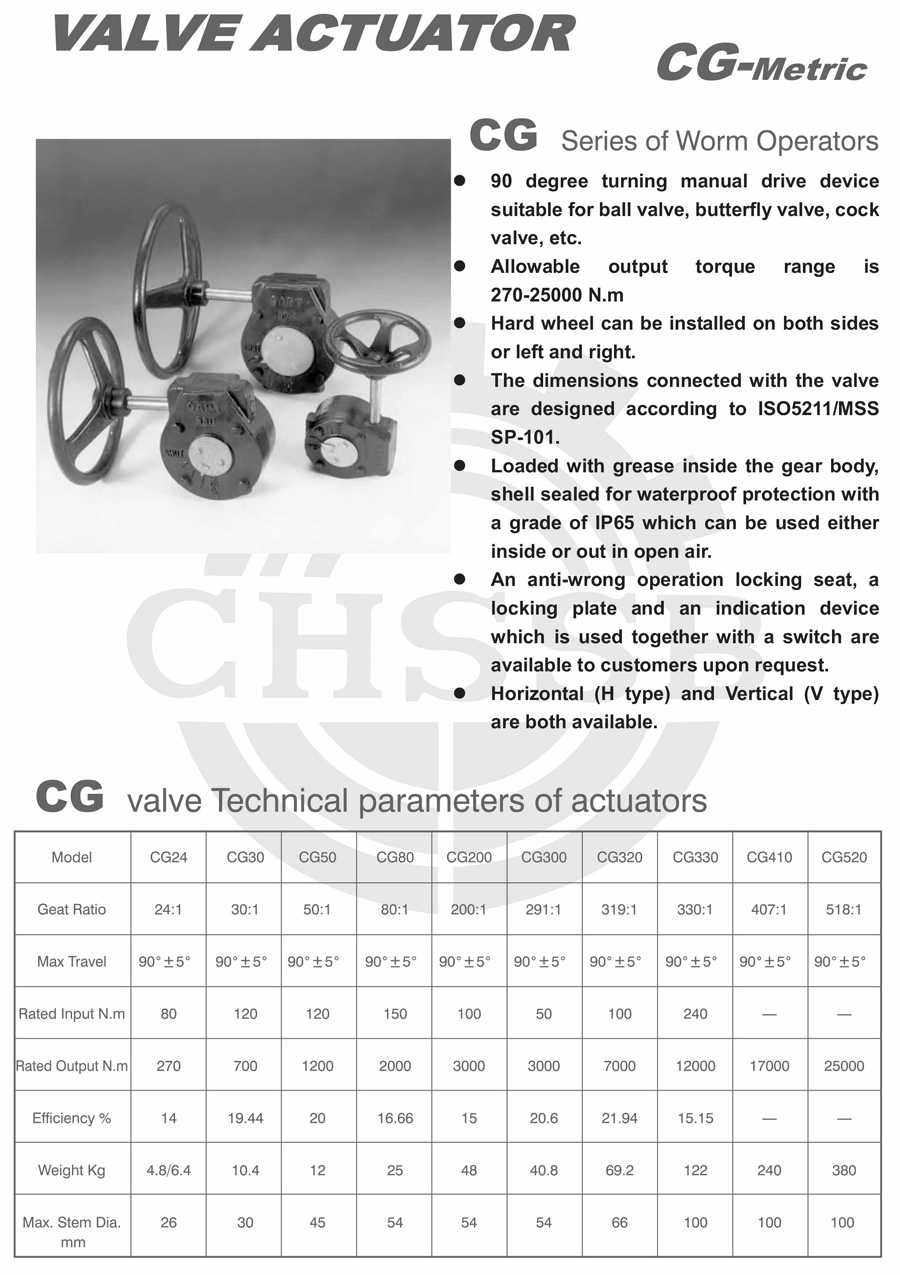

CG Series of Worm Operators
CG Series of Worm Operators
Range of product:
ANSI:(CGA24-CGA520;CGA350-CGA420)
DIN:(CG24-CG520;CG2350-CG420)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
●90"-turning manual drive device suitable for ball valve, butterfly valve, cock valve and other types of valves.
●Allowable output torque range is 2390~221250 LBF. IN.
●Handwheel can be installed on both left and right sides.
●The dimensions joining with the valve are designed according to ISO5211/MSS SP-101.
●Loaded with grease inside gear body; shell sealed for waterproof protection (grade IP65)， which are suitable for devices used indoor and outdoor.
●An anti-wrong-doing operation locking seat, a locking plate and an indication
device are used together with a limiter switch at the customers' choice.
●There are two types: horizontal (H type) and vertical (V type).
Standards | Series Type | SizeRange |

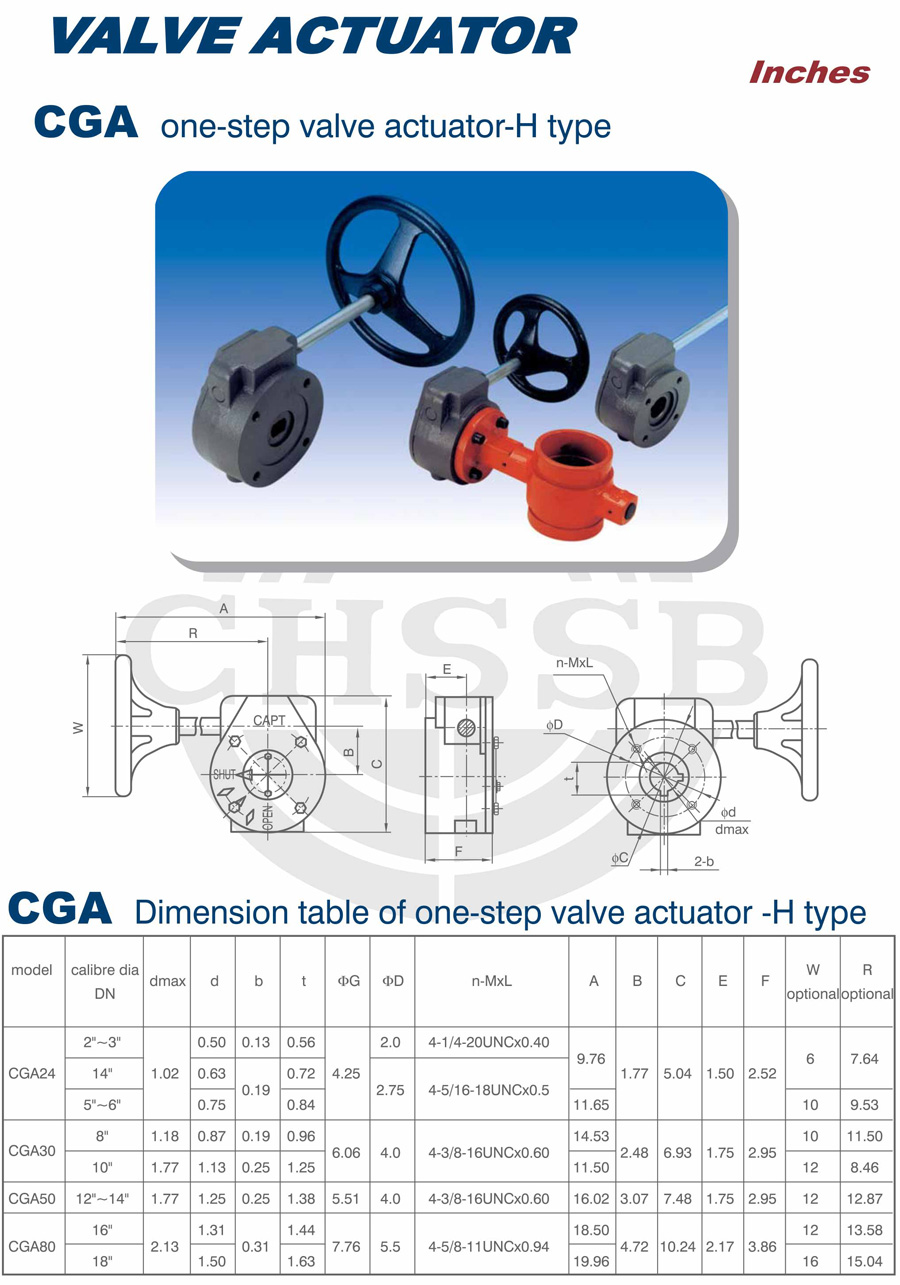

ANSI | CGA-H Type | CGA24-CGA520 |

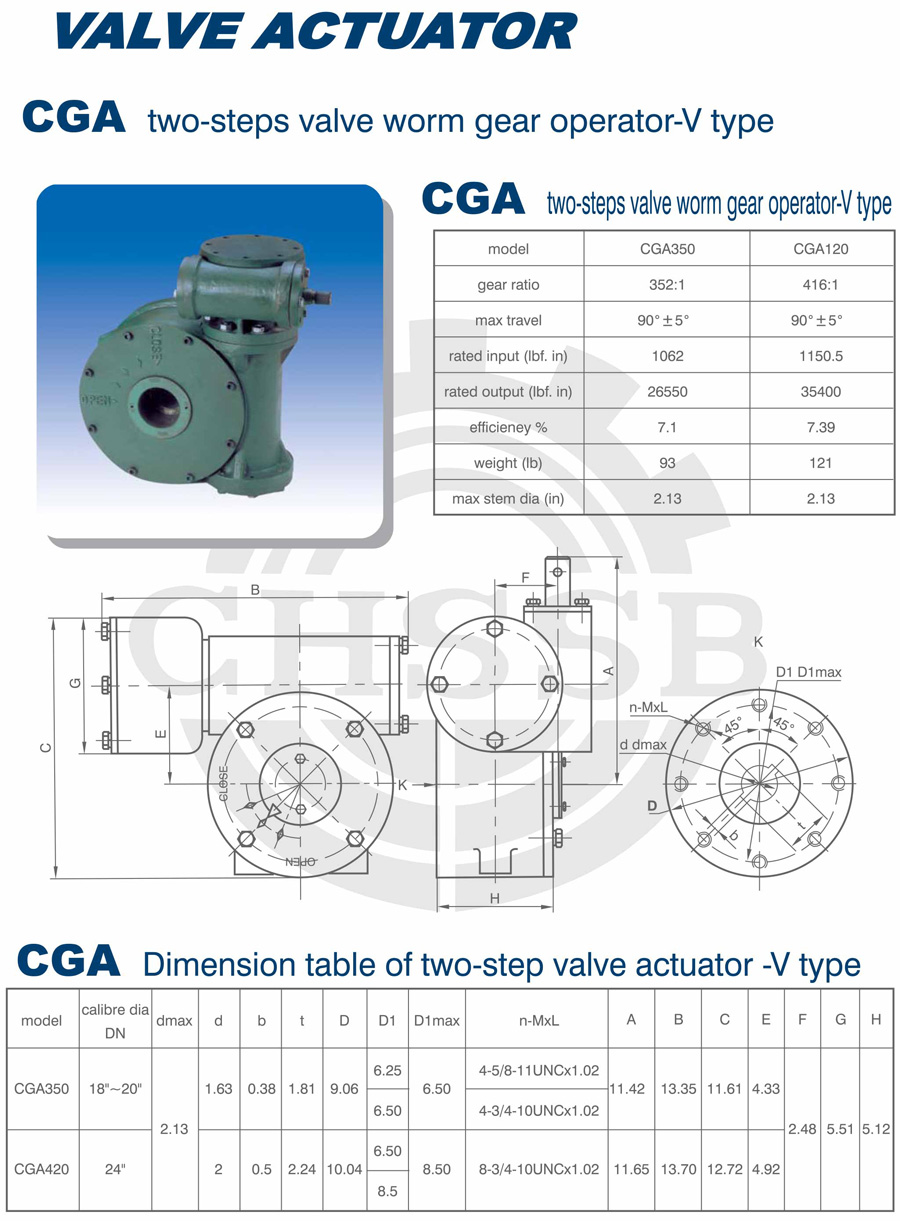

CGA-V Type | CGA350-CGA420 | |

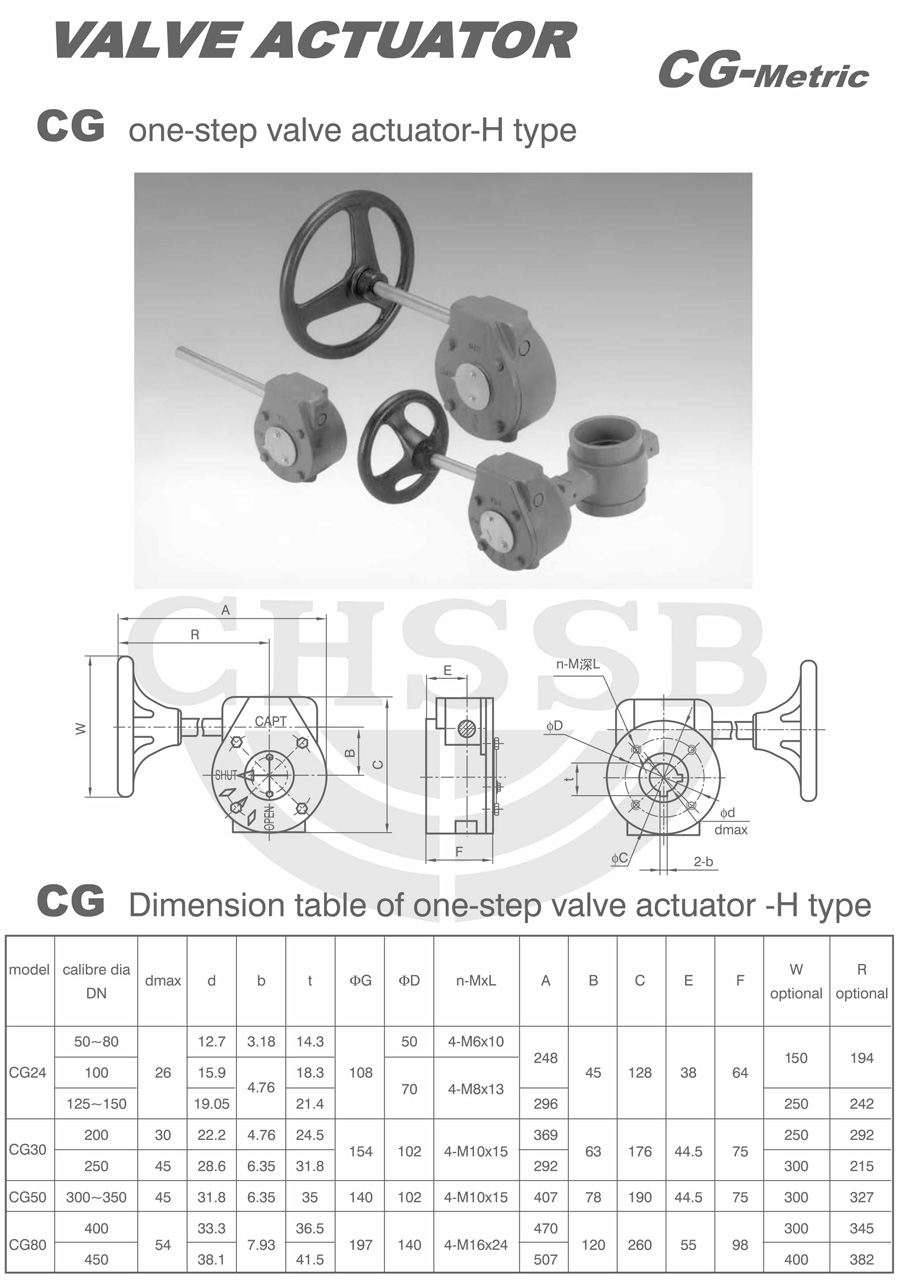

DIN | CG-H Type | CG24-CG520 |

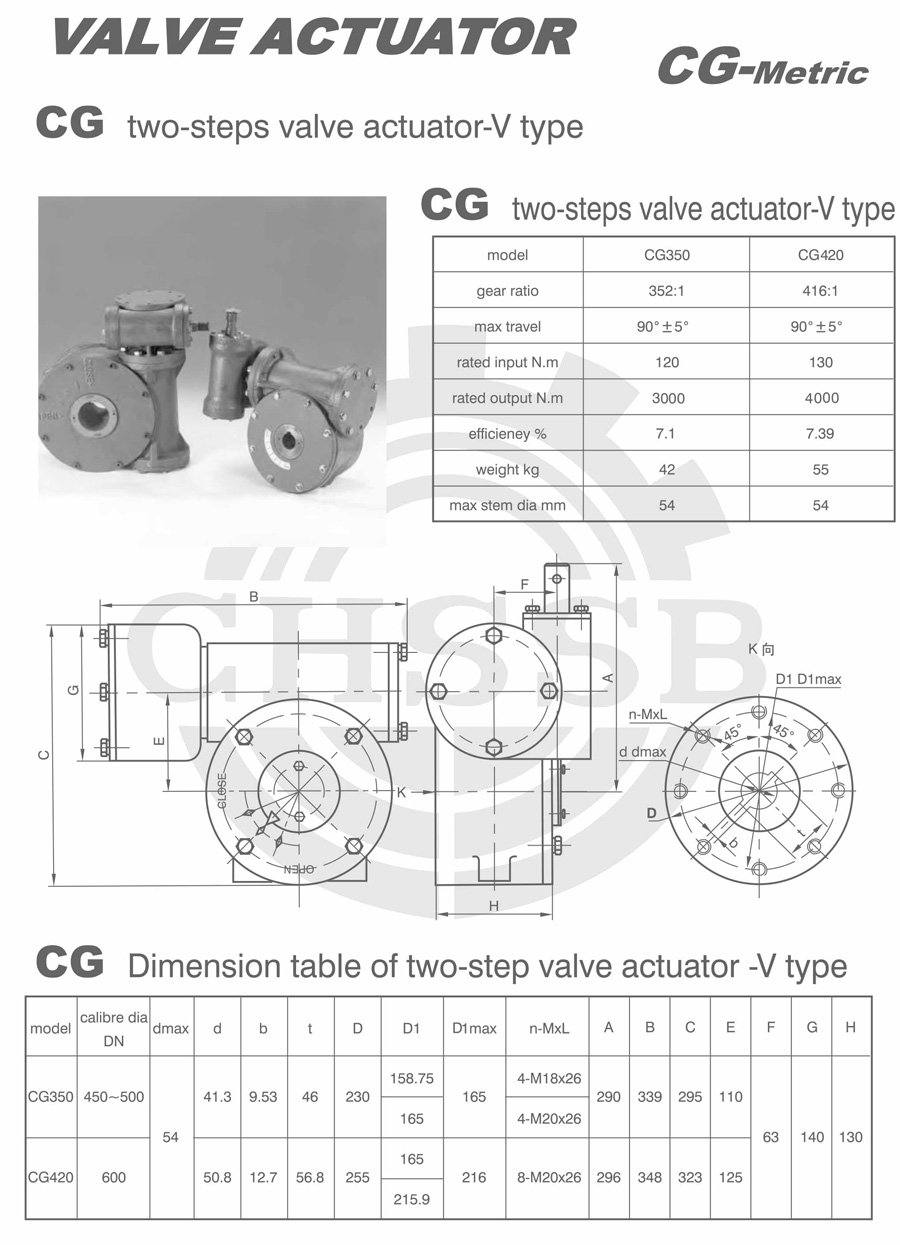

CG-V Type | CG350-CG420 |
ANSI Standard:

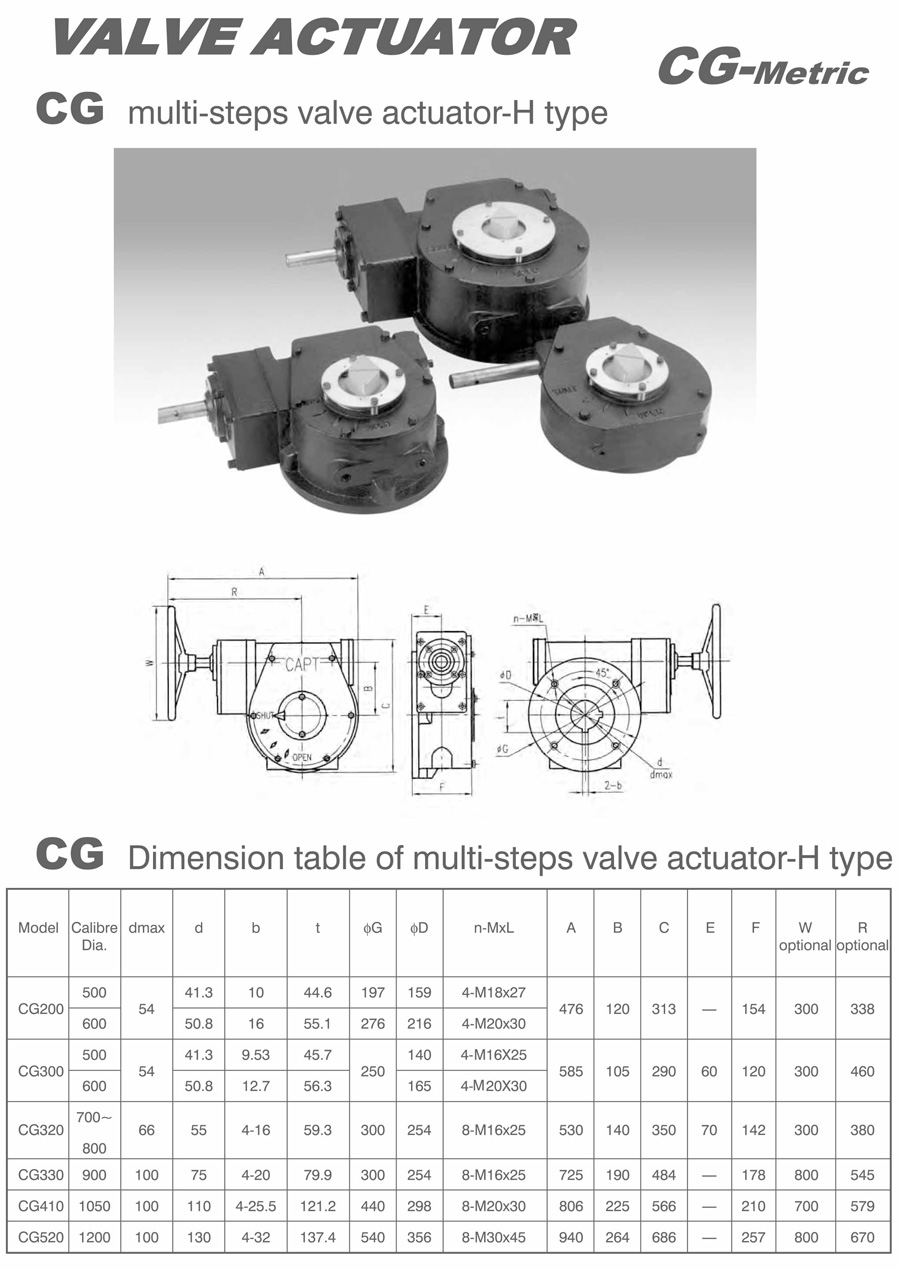

DIN Standard:
