F Type CAPT-LOCKS
F Type CAPT-LOCKS
Range of product:
ANSI:(NL0.34FA to NL7.1516FA;20x47 to 100x145)
DIN:(CL14x55FE to CL50x80FE;CL18x47FA1 to
CL400x495FA1;CL18x47FA2 to CL400x495FA2;
CL19x47FB1 to CL220x285FB1;CL19x47FB2 to
CL220x285FB2;CL5x16FC to CL85x112FC;
CL9x47FD to CL150x200FD;CL5x16FAR to
CL50x80FAR)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
FA CAPT-LOCKS are the extension series of FE type. The scope of bore diameter is from 18mm to 400mm and the biggest outside diameter D can reach 495mm. Their suitability to installation is very high.They are widely used in general mechanical joints.
Under the pressure of tightening bolts, the inner and outer rings moving along the taper surface oppositively caused radial pressure and frictional force, which join the hubs and shafts together.
FA CAPT -LOCKS are divided into two types:FA1 and FA2. The only difference is in the flange diameter of inner ring. As for FA1 type, the flange diameter of inner ring is 6mm bigger than outer
ring.While as for FA2 type, the flange diameter of inner ring is the same as outside ring.
The installation of FA CAPT-LOCKS is very simple. They can be self-centered installed and their concentricity is very high. The processing is very simple. The requirement to hub's bore diameter and shaft diameter is not very strict, so that the time and cost for machining process can be saved.
FB CAPT-Locks are composed of two inner and outer rings with taper surface and their corresponding tightening bolts.They have simple structures,have easy on and easy off capabilities and have lower costs.
Under the pressure of tightening bolts,the inner and outer radial pressure and frictional force join the hubs and shafts together.
FB CAPT-Locks are divided into two types:
FB1 and FB2.The only difference is in the flange diameter of the inner ring.As for the FB1 type,the flange diameter of the inner ring is 6mm larger than the outer ring. For the FB2 type,the flange diameter of the inner ring is the same as the outer ring.
The installation of the FB CAPT-Locks is very simple. They can be self installed and their concentricity is very high.They machining process is very simple.They requirement to the hub's bore diameter and shaft diameter is not very strict so that the time for machining process and cost can be saved.
FB CAPT-Locks are the heavier series of the FA type.The scope of the bore diameter is from 19mm-220mm and the largest outside diameter D can reach 285mm.They are suitable for installation and can be widely used in mechanical joints and can transmit larger torque.
Product range：
Standards | Series Type | SizeRange |

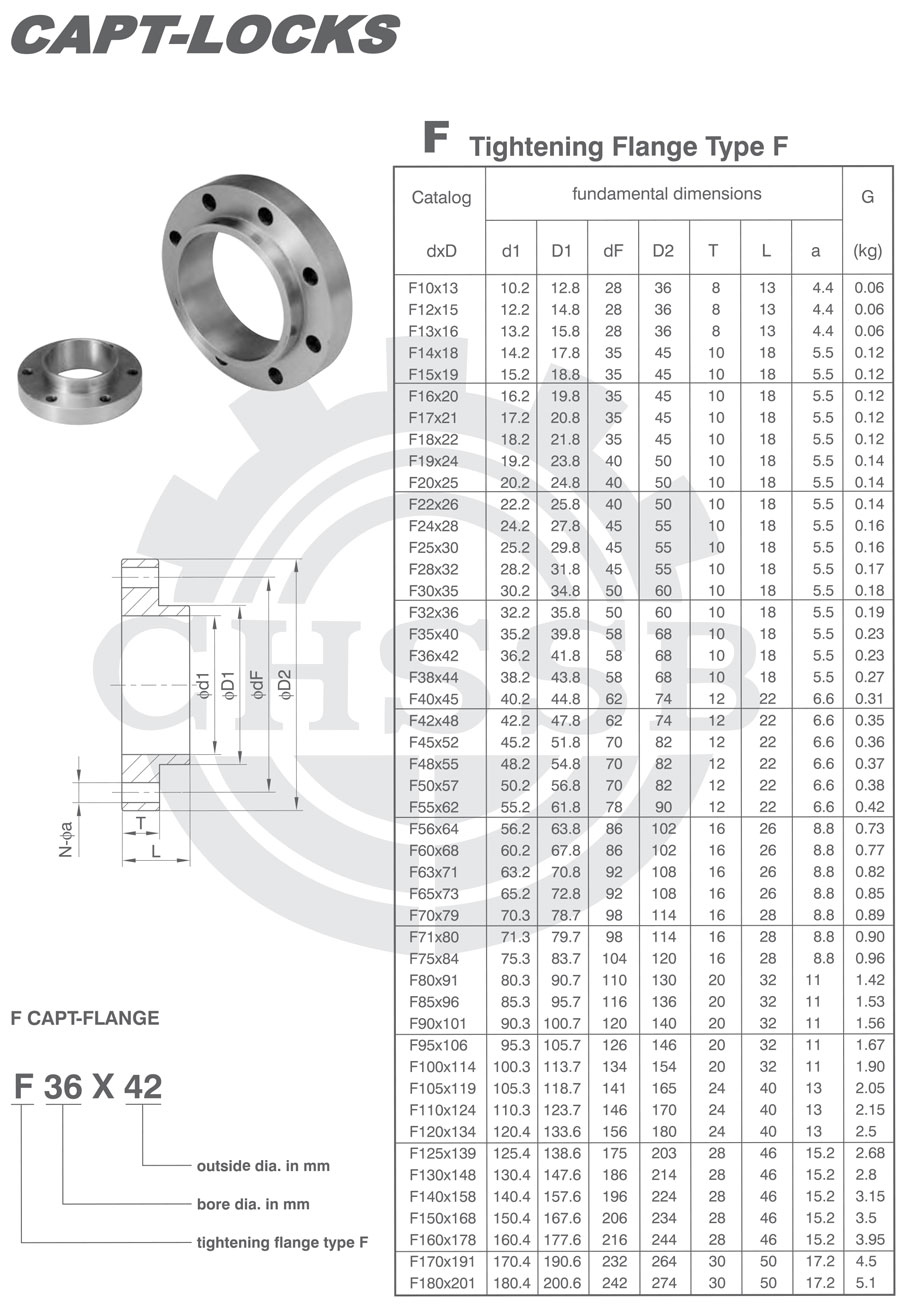

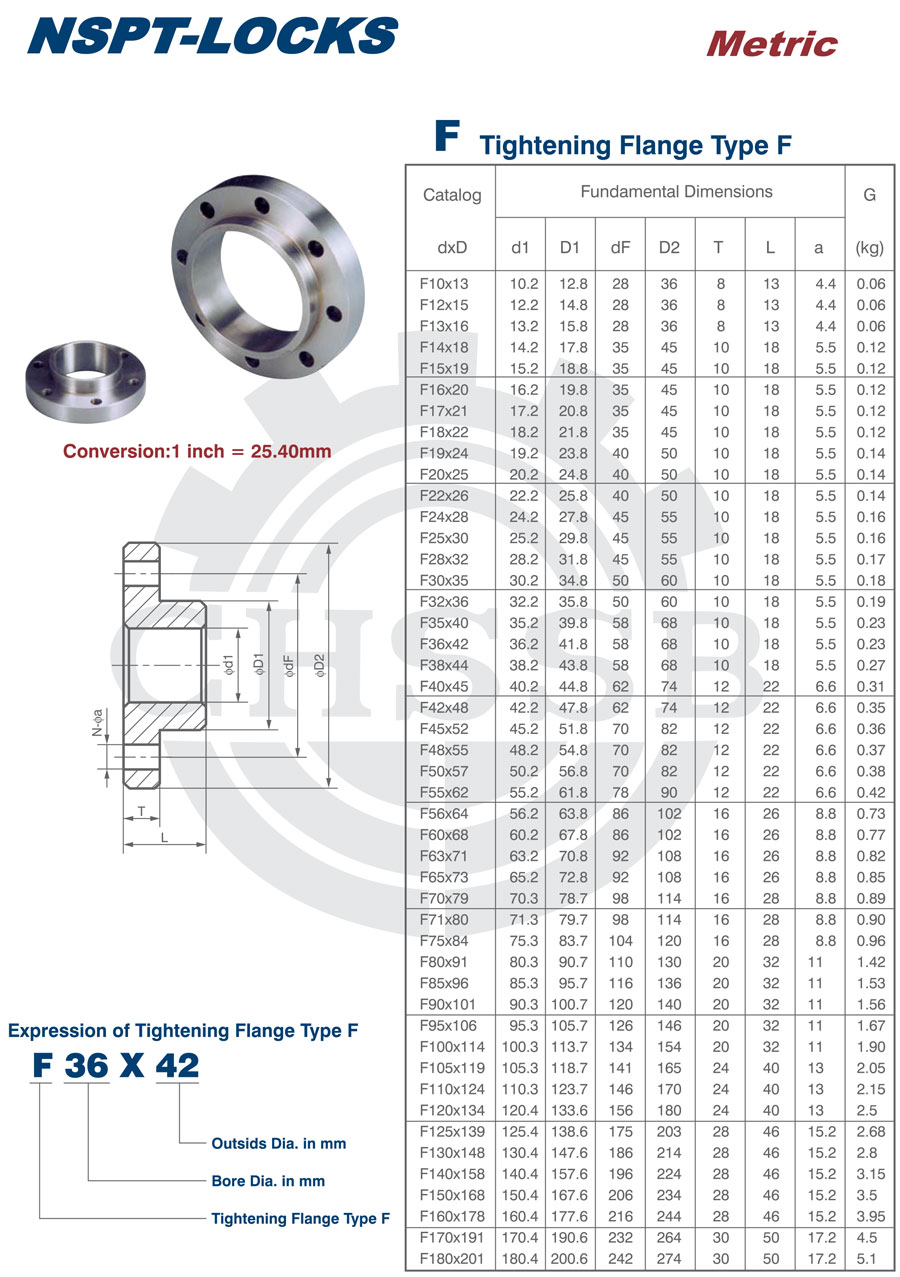

ANSI/DIN | F(Tightening Flange Type F)(Metric) | F10x13至F180x201 |
ANSI Catalog:
DIN Catalog:
