FL & FLS Type Couplings
FL & FLS Type Couplings
Range of product:
ANSI:(FL100-FL630;FLS112-FLS630)
DIN:(FL100-FL630;FLS112-FLS630)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details
• When installing couplings, the concentrictiy between the center lines of the bores of the two half couplings should be within 0.03.
• When using the couplings,safe device must be provided.
Standards | Series Type | SizeRange |
ANSI/DIN | FL | FL100-FL630 |
FLS | FLS112-FLS630 |

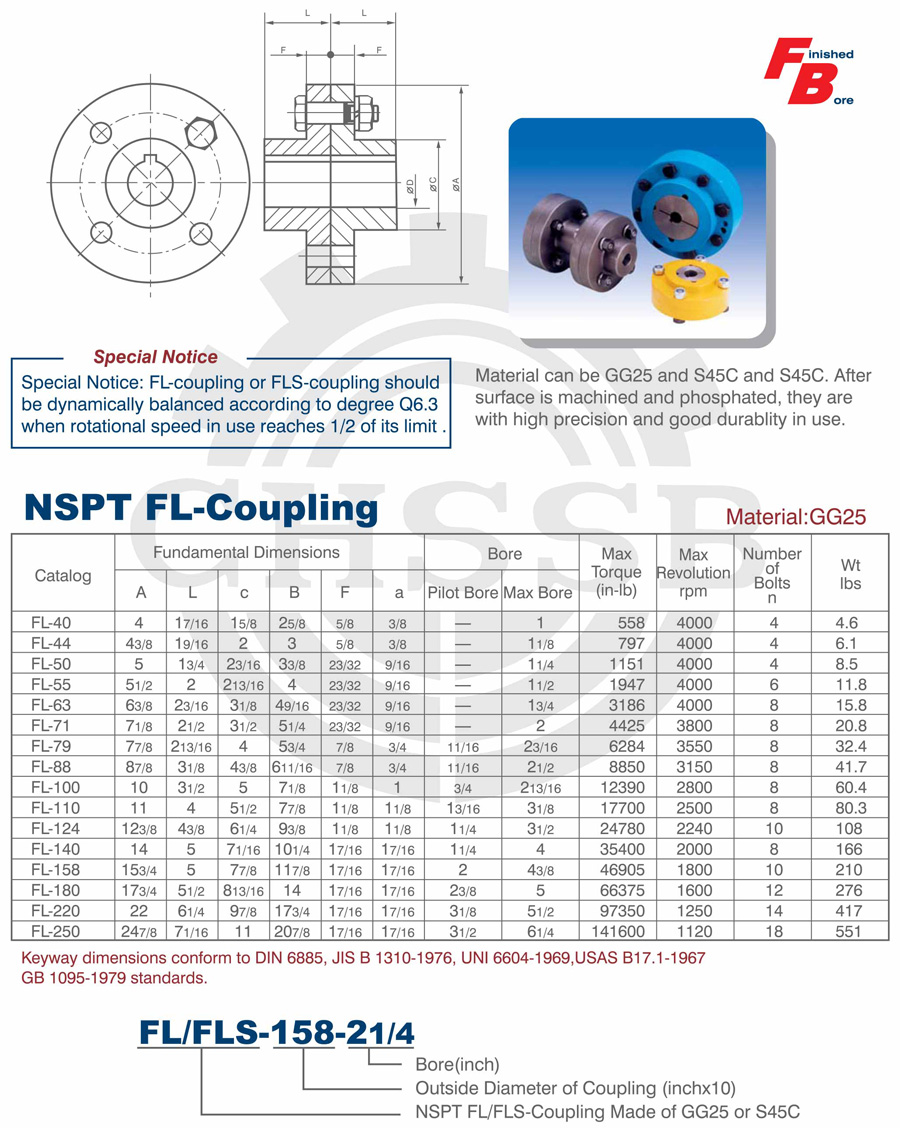

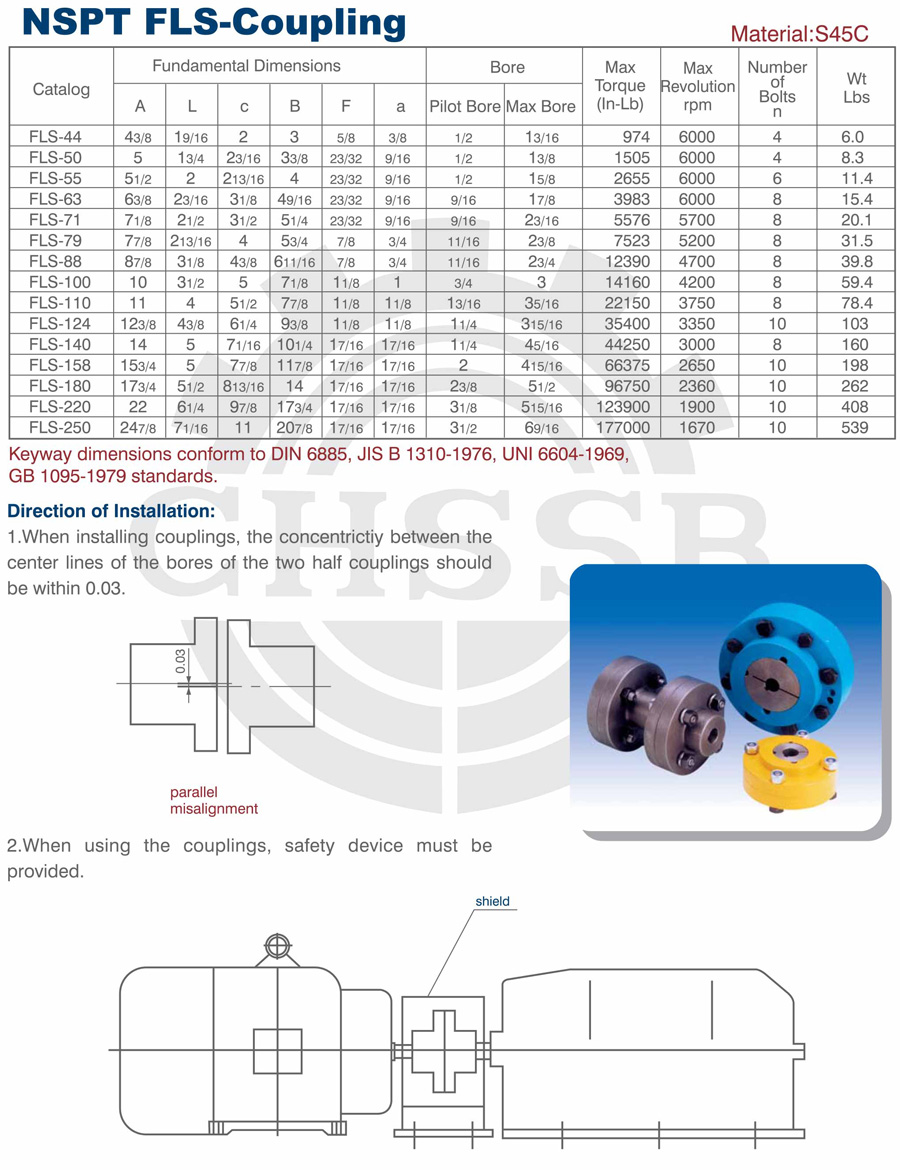

ANSI Standard:

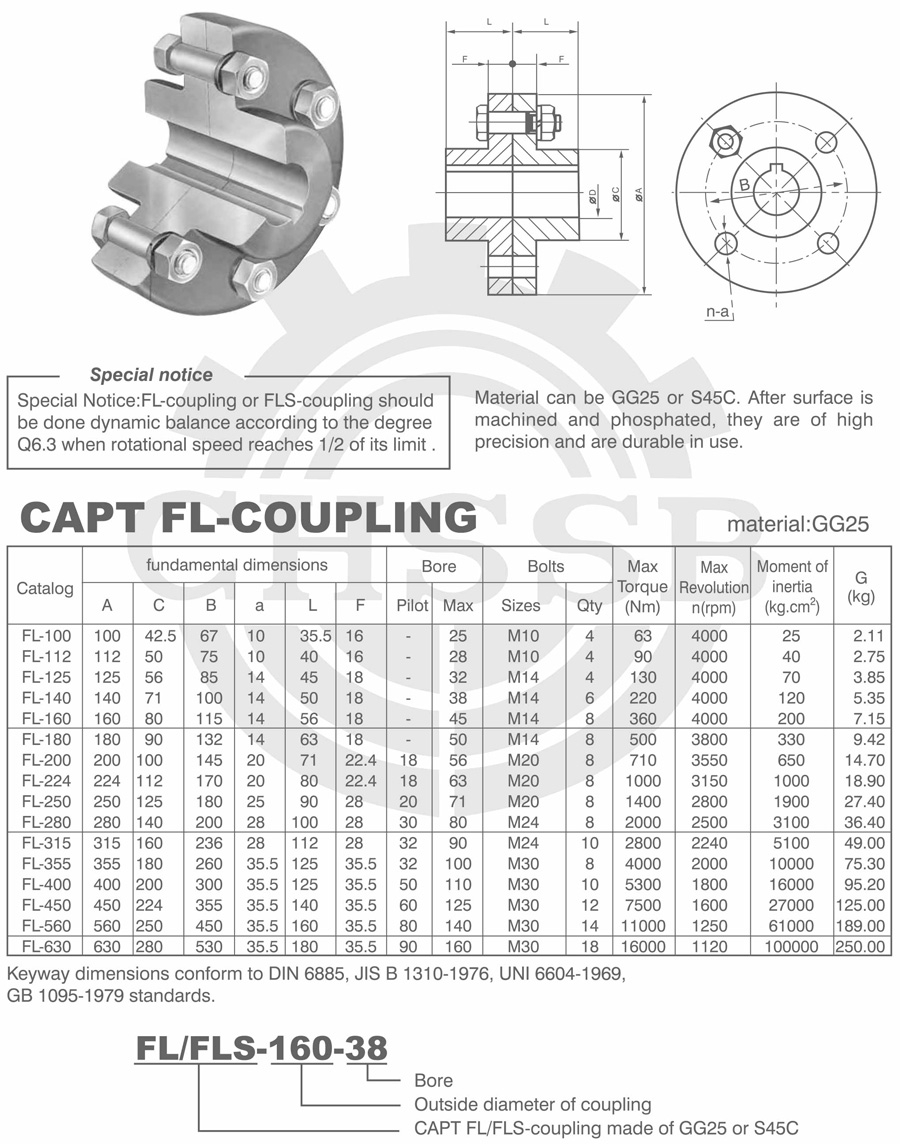

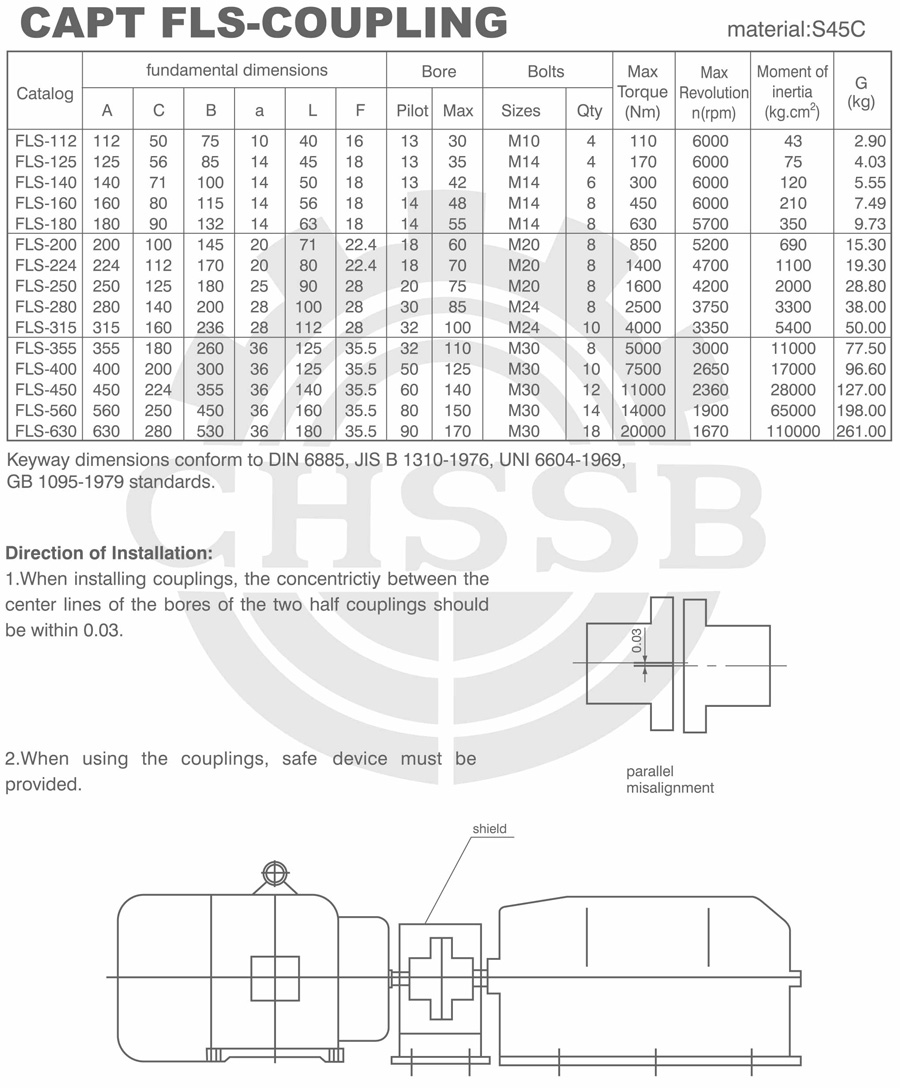

Din Standar:
