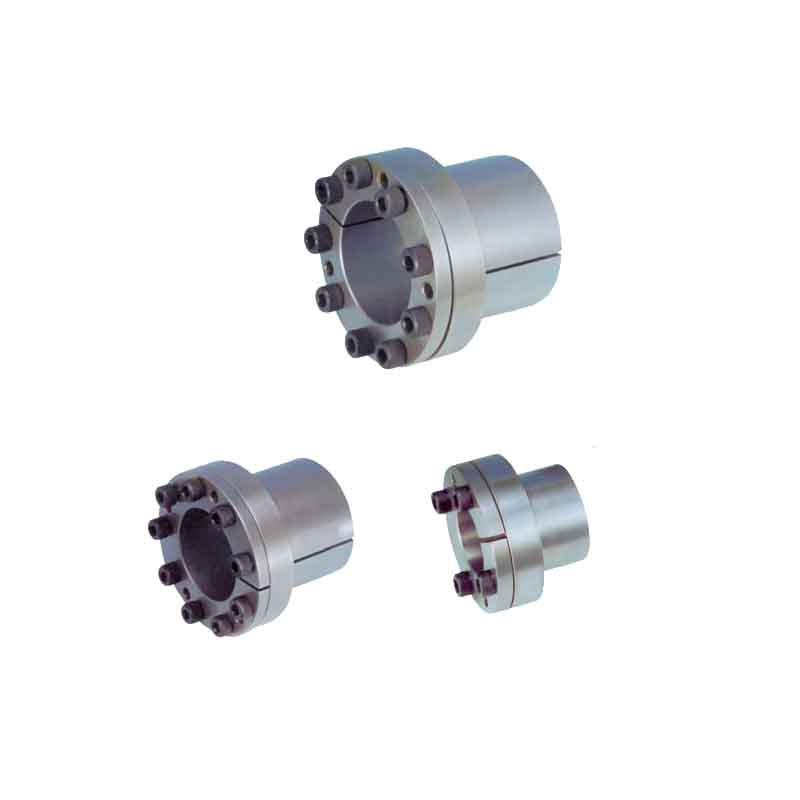

T(Z11) Type CAPT-LOCKS
T(Z11) Type CAPT-LOCKS
Range of product:
ANSI:(CL6x14T to CL130x165T)
DIN:(CL6x14T to CL130x165T)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
ML /ML-B NSPT-LOCKS has the characteristics of structure simplicity, easy self-installation, high concentricity, and good durability. It can be quickly assembled without any additional equipment and has wide range of selection for various sizes.The smallest width can be only 10mm.
The installation of ML /ML-B NSPT-LOCKS is as followed:
Tighten the screw nuts to move the outer taper ring axially.External force will be formed on the connecting surface between the shaft and the hub due to the frictional force on the taper surfaces between both inner and outer rings. The connection is strong and safe in shaking situation as well because of the self-locking feature and the strong frictional force between the parts.
Simply reverse the installation procedures for disassembling the ML/ML-B NSPT-LOCKS.
Standards | Series Type | SizeRange |
ANSI/DIN | T(Z11) | CL6x14T to CL130x165T |
ANSI Catalog：
ANSI T(Z11) Type CAPT-LOCKS.pdf
DIN Catalog：DIN T(Z11) Type CAPT-LOCKS.pdf
