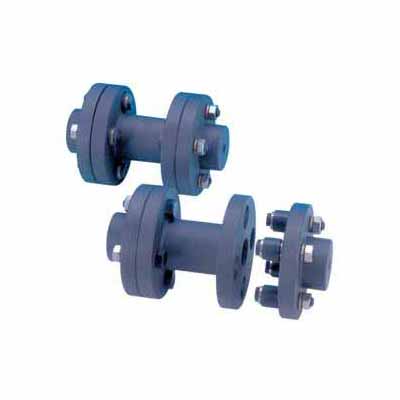

GL Type Couplings
GL Type Couplings
Range of product:
ANSI:(GL44-GL124)
DIN:(GL112-GL315)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
Product Details

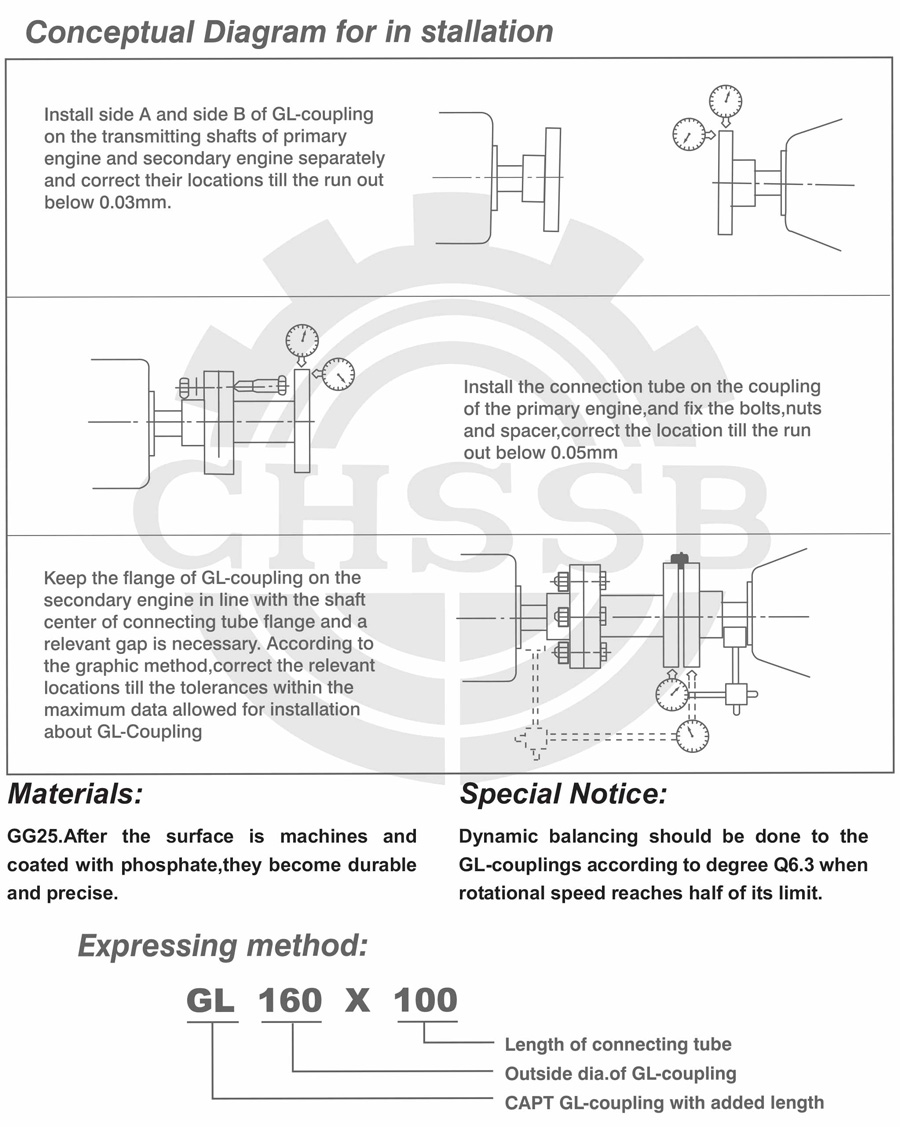

GG25.After the surface is machines and coated with phosphate, they become durable and precise.
GL-coupling should be dynamically balanced according to the degree Q6.3 when rotational speed reaches 1/2 of its working limit.
Standards | Series Type | SizeRange |
ANSI | GL | GL44x40-GL124x118 |
DIN | GL | GL112x100-GL315x300 |

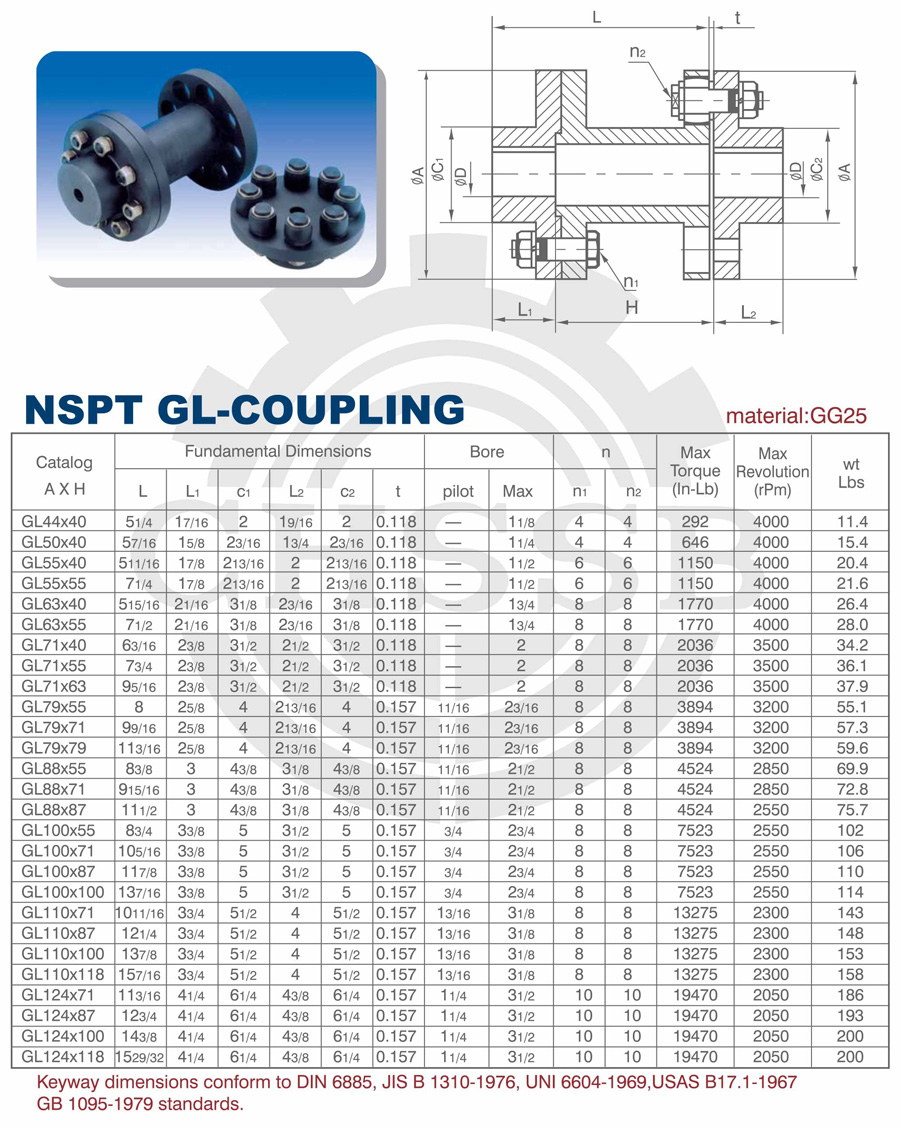

ANSI Standard:

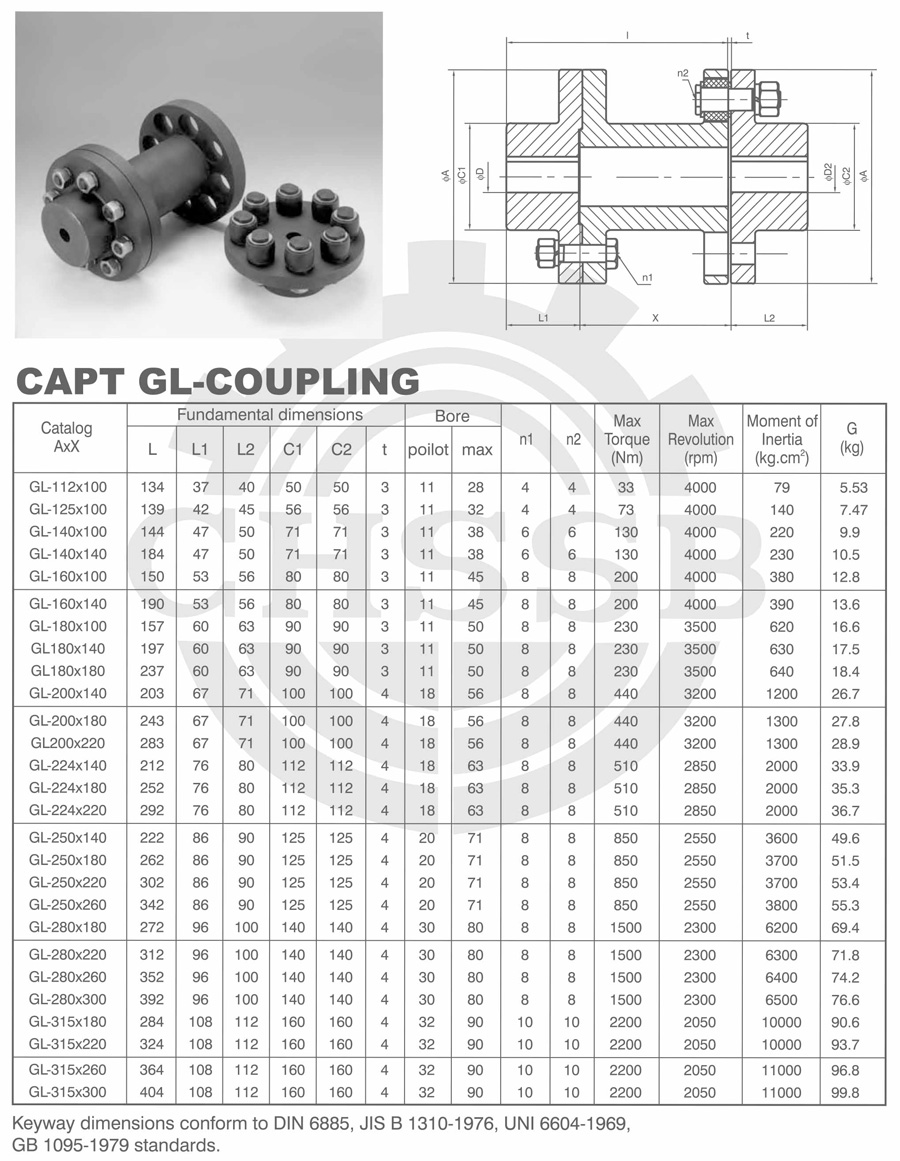

DIN Standard:
