KC Chain Couplings

KC Type Couplings

Range of product:

ANSI:(KC3012-KC12022;FB-KC3012-FB-KC6022;

MC4012-MC12022;MC4016TB-MC10020TB;

MC4016JA-MC8018SF;BC4012-BC6018;

BC3520G-BC11018R)

DIN:(KC3020-KC24026)

Inch size product (Apply to ANSI market)

Metric size product (Apply to DIN market)

Product Details

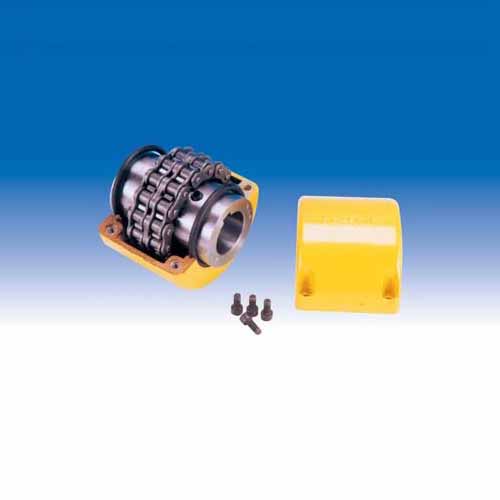

Chain coupling is composed of a duplex roller chain and two sprockets. The function of connection and detachment is done by the joint of chain. It has the characteristics of simplicity, high efficiency, easy-on and easy-off and nice outlooking.It also has aluminium cover to prevent dust and protect the lubricant in order to extend the life of chain coupling.

Standards	Series Type	SizeRange

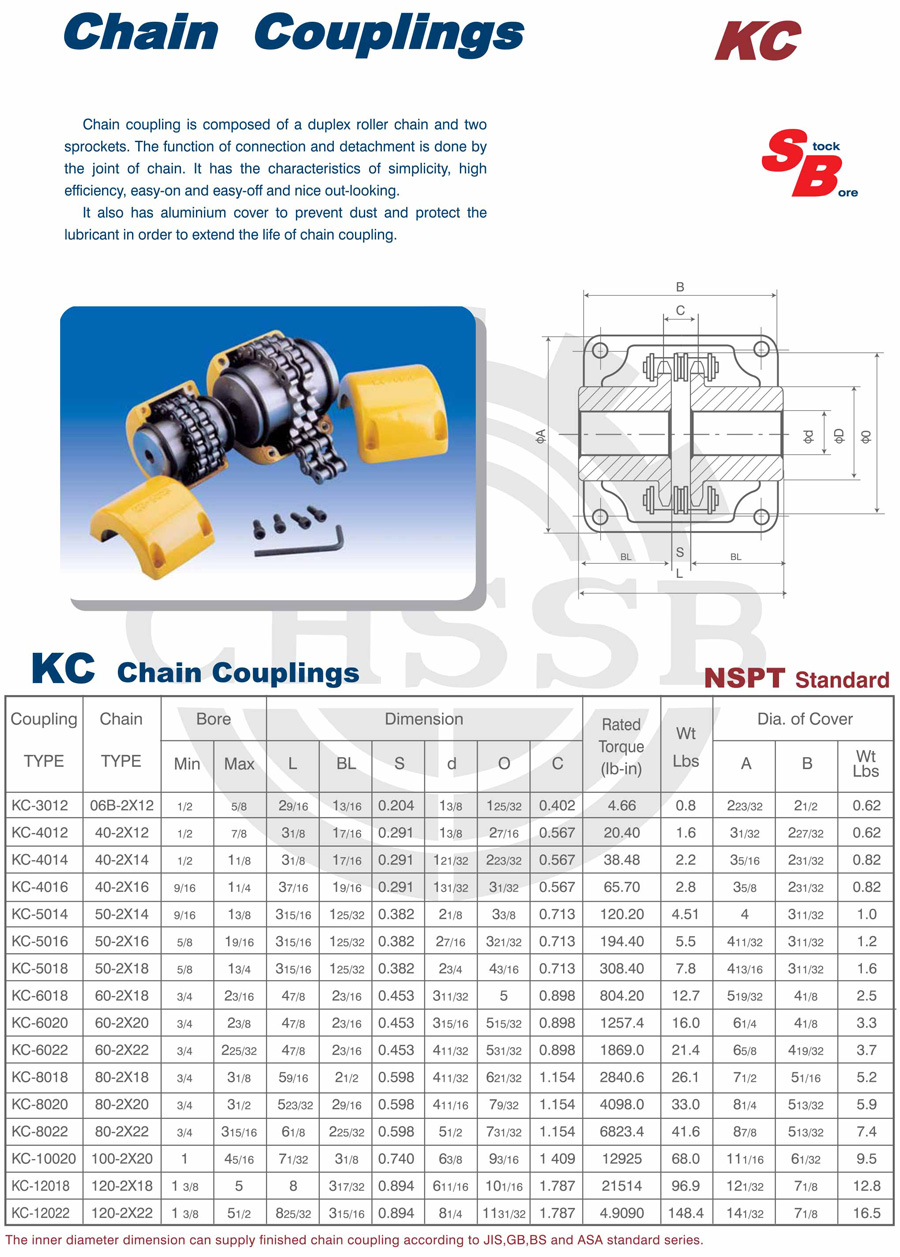

ANSI	SB-KC	KC3012 to KC12022

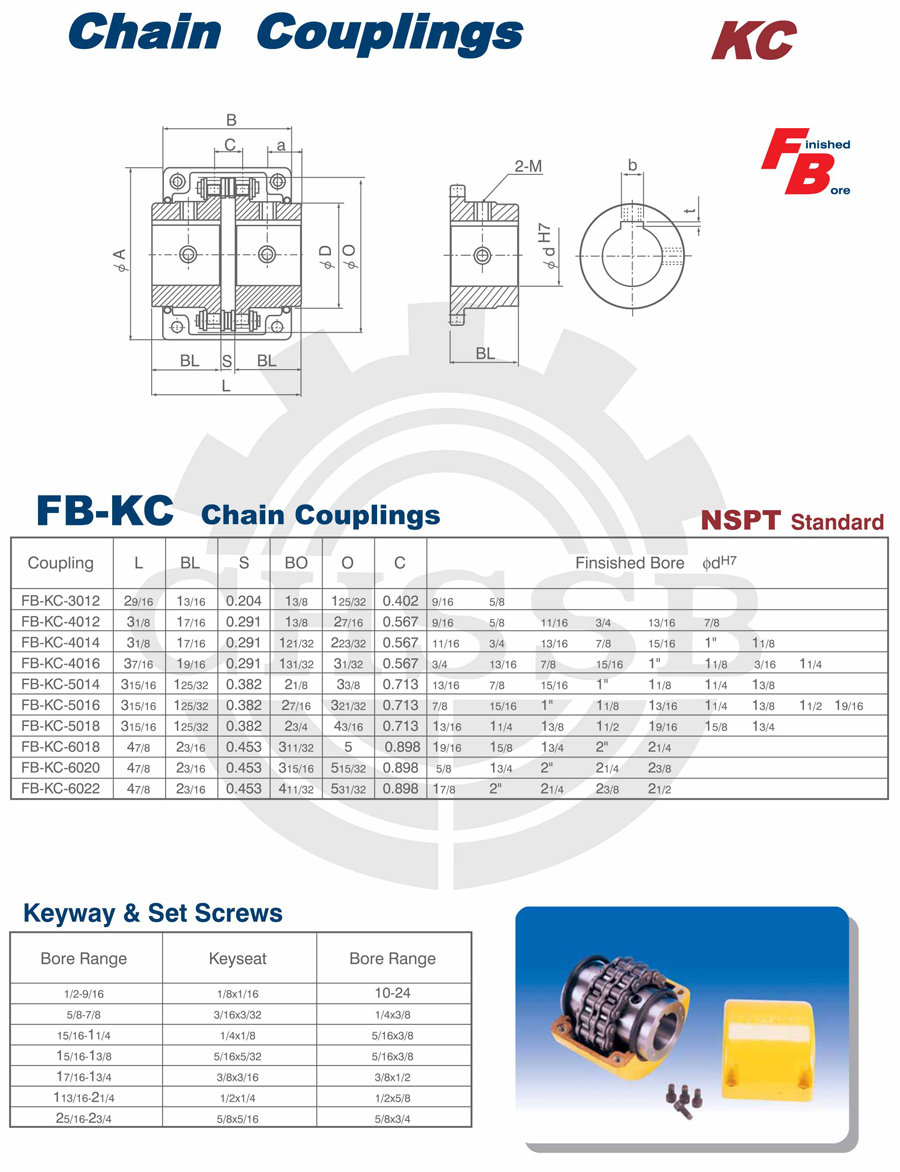

	FB-KC	FB-KC3012 to FB-KC6022

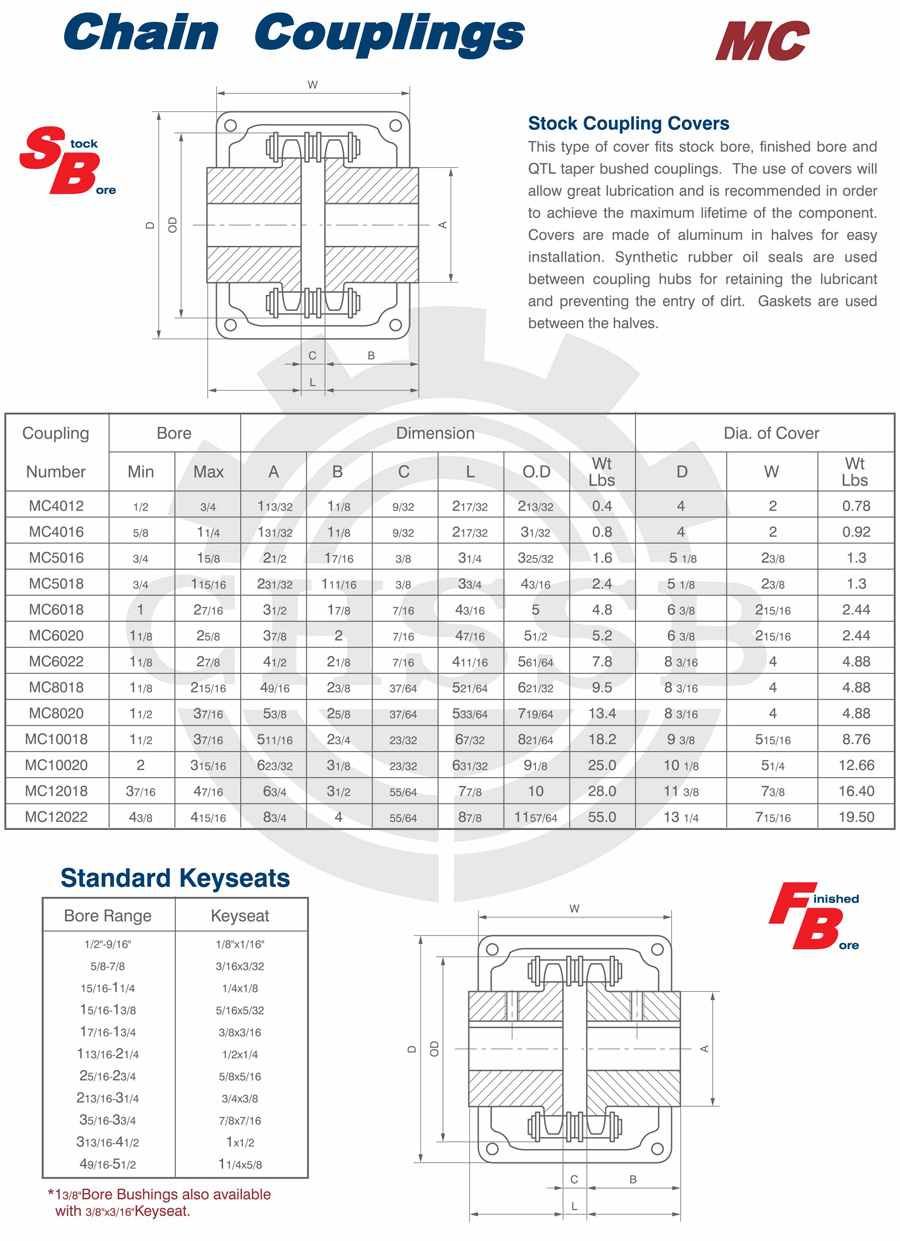

	FB-MC	MC4012 to MC12022

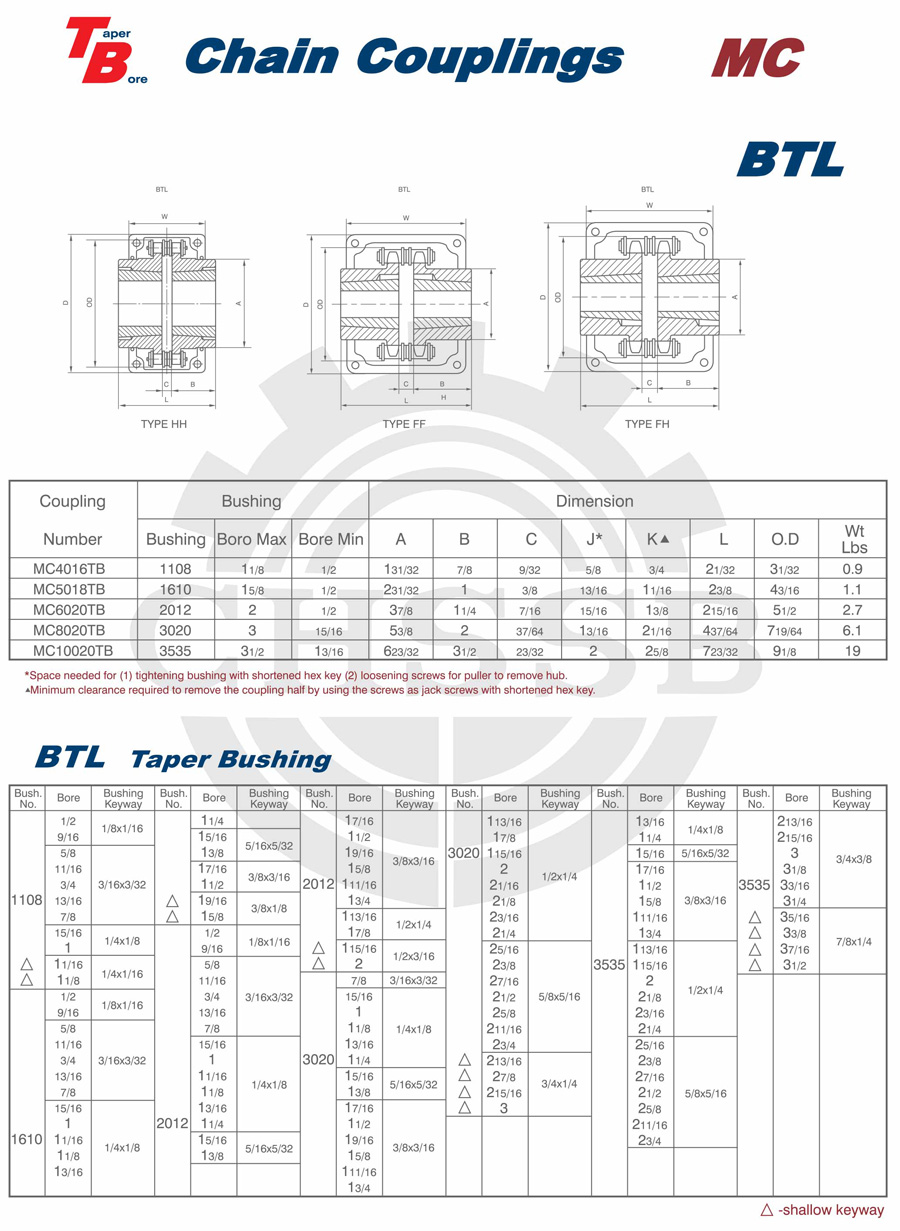

	BTL-MC	MC4016TB to MC10020TB

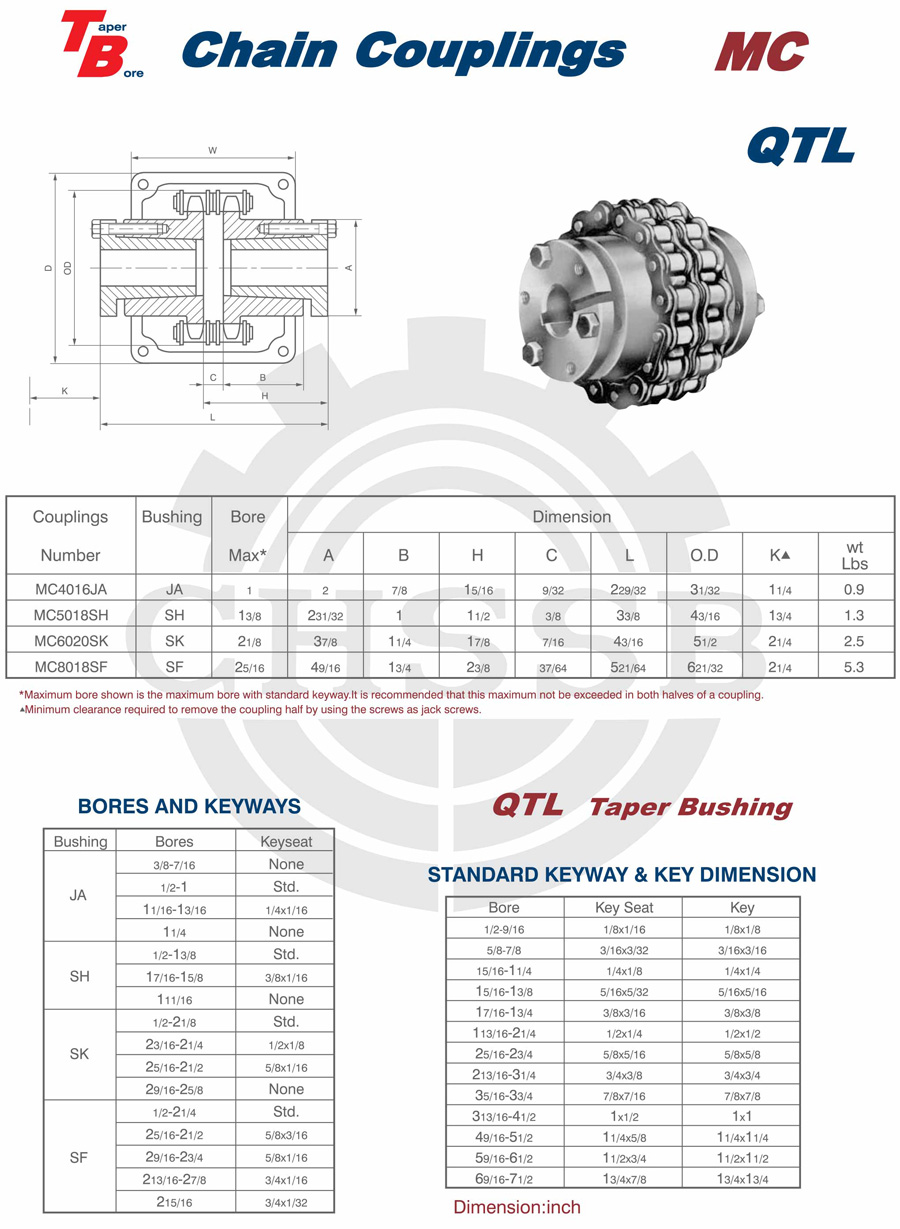

	QTL-MC	MC4016JA to MC8018SF

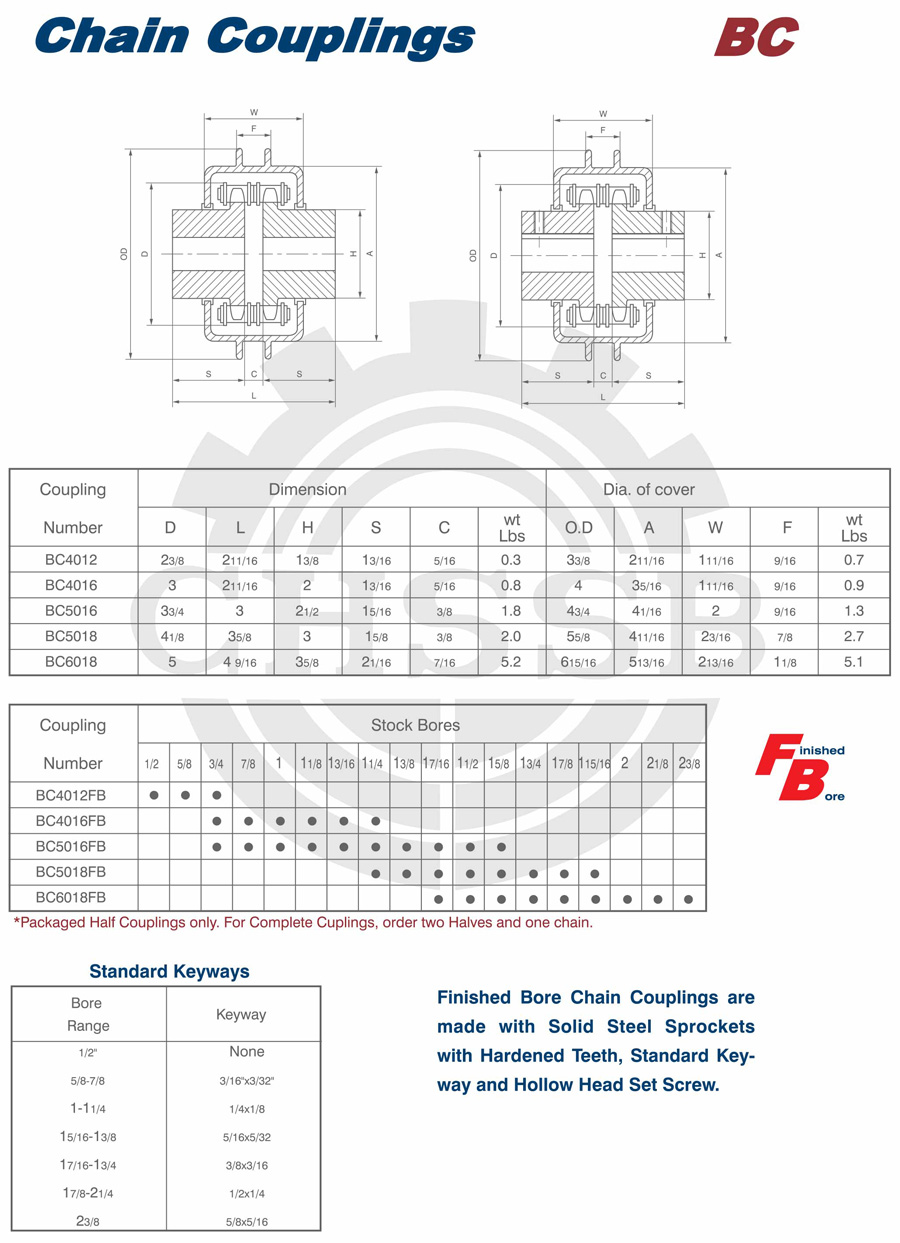

	FB-BC	BC4012 to BC6018

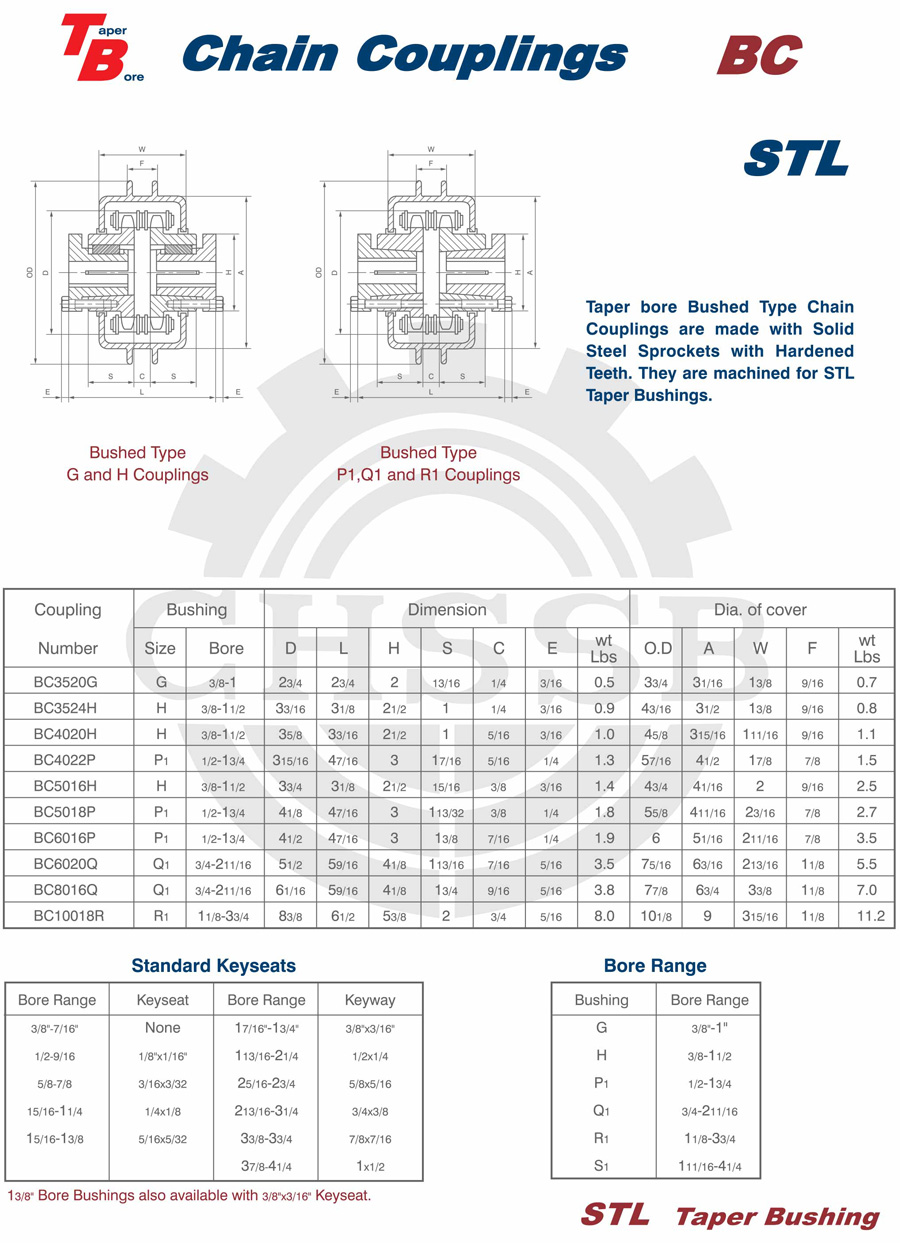

	STL-BC	BC3520G to BC11018R

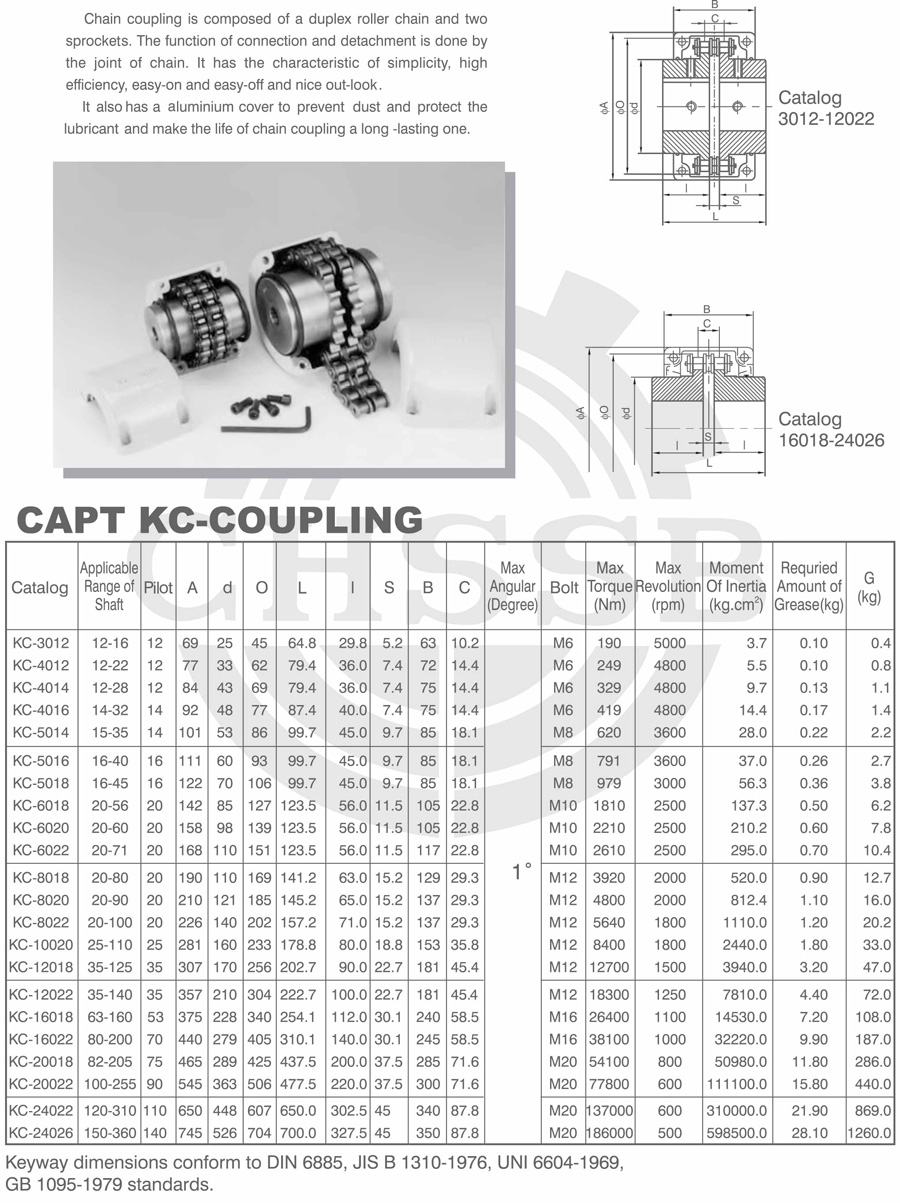

DIN	KC	KC3020 to KC24026
