BG Series of Bevel Gear Operators
BG Series of Bevel Gear Operators
Range of product:
ANSI:(BGA05-BGA50;BGA30B-BGA100;
BGSA08-BGSA50)
DIN:(BGH05-BGH50;BGH30B-BGH100;
BGV08-BGV50)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)

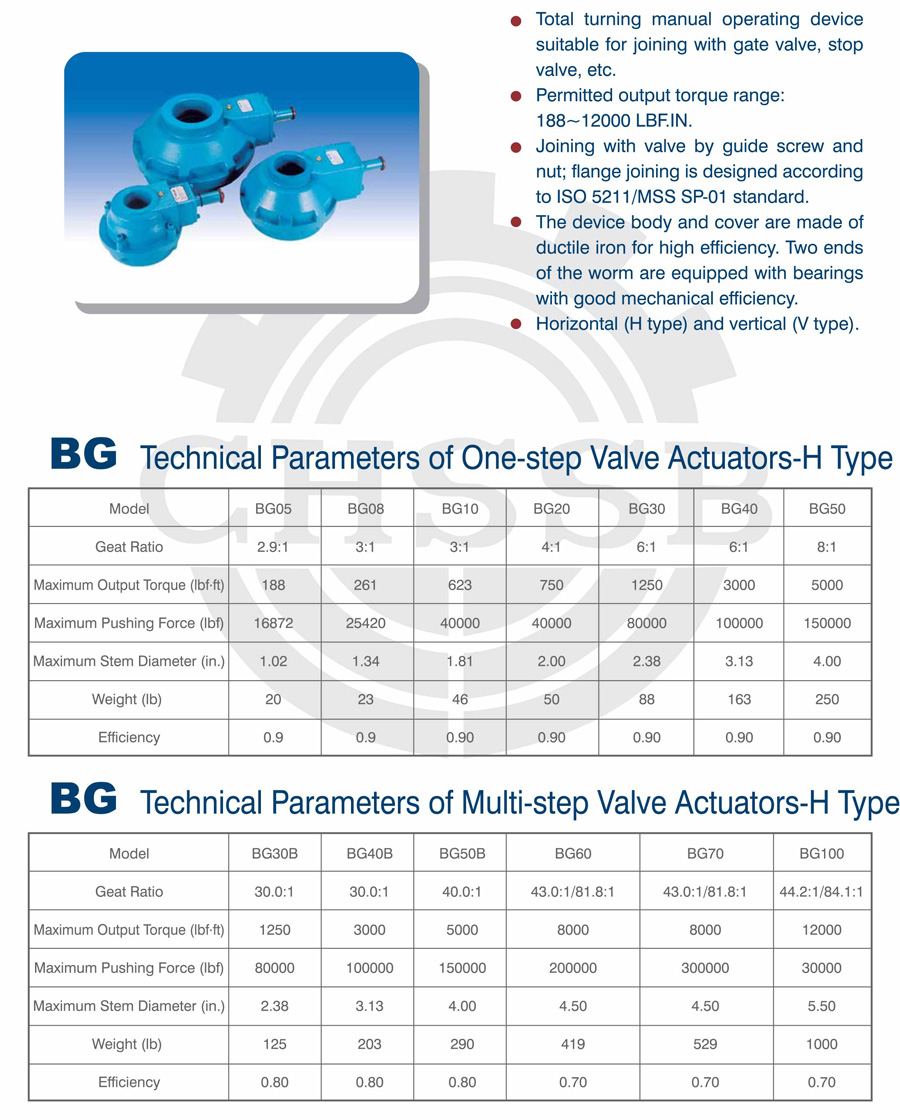

●Total turning manual operating device suitable for joining with gate valve, stop valve, etc.
●Permitted output torque range:18~12000 LBF.IN.
●Joining with valve by guide screw and nut; flange joining is designed according to ISO 5211/MSS SP-01 standard.
●The device body and cover are made of ductile iron for high efficiency. Two ends of the worm are equipped with bearings with good mechanical efficiency.
●Horizontal (H type) and vertical (V type).
Standards | Series Type | SizeRange |

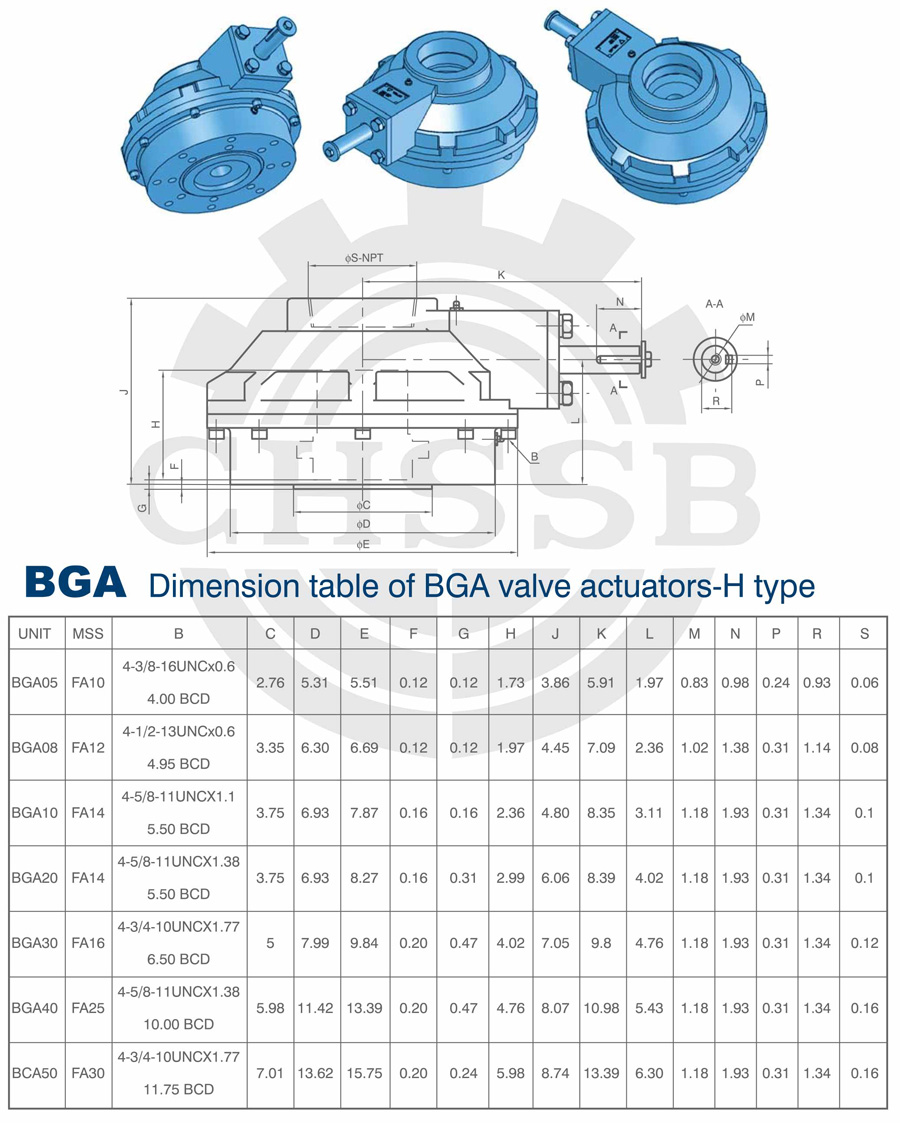

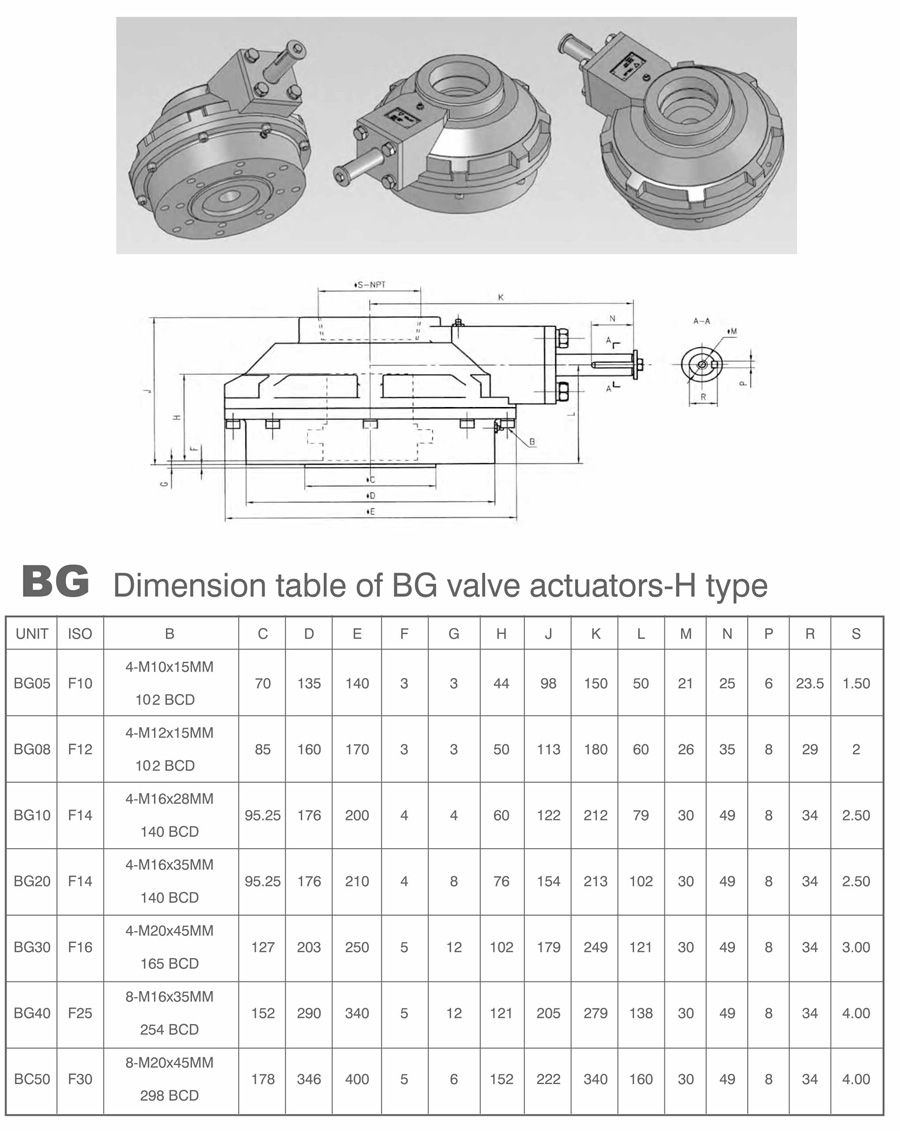

ANSI | BG One-step H Type | BGA05-BGA50 |

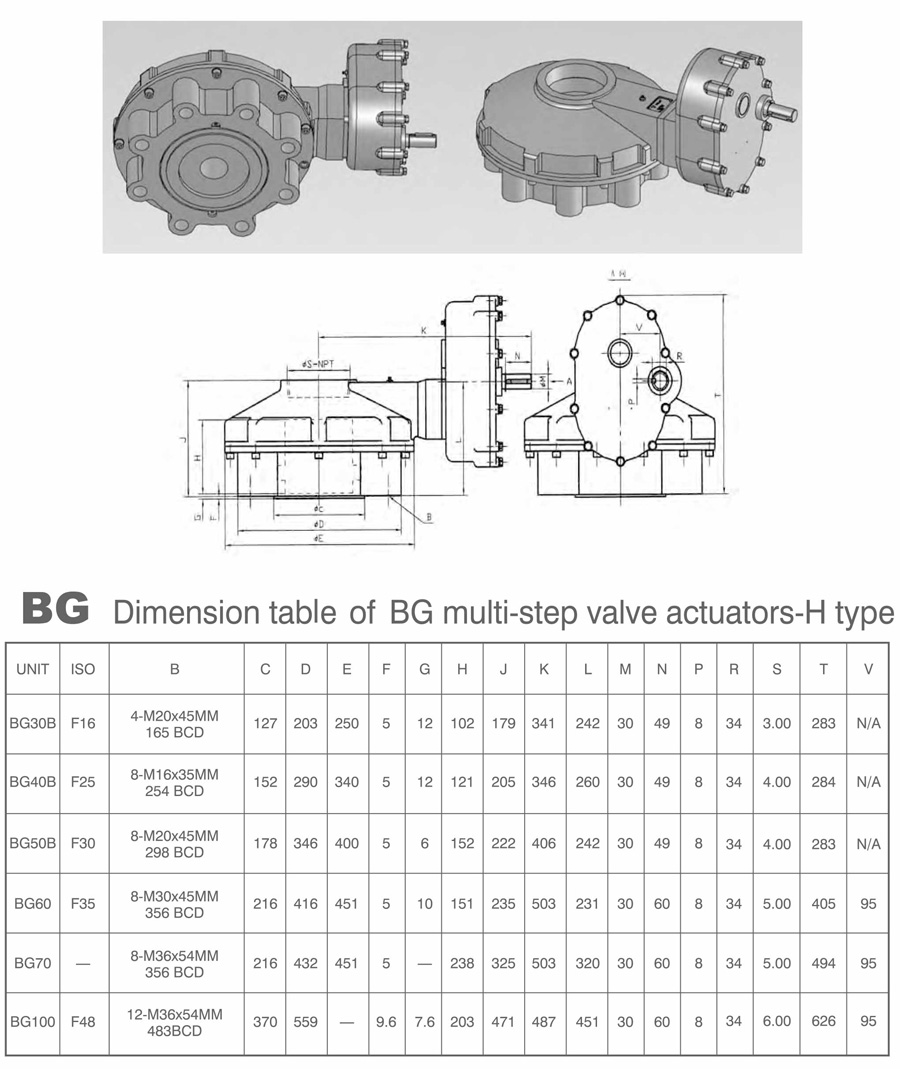

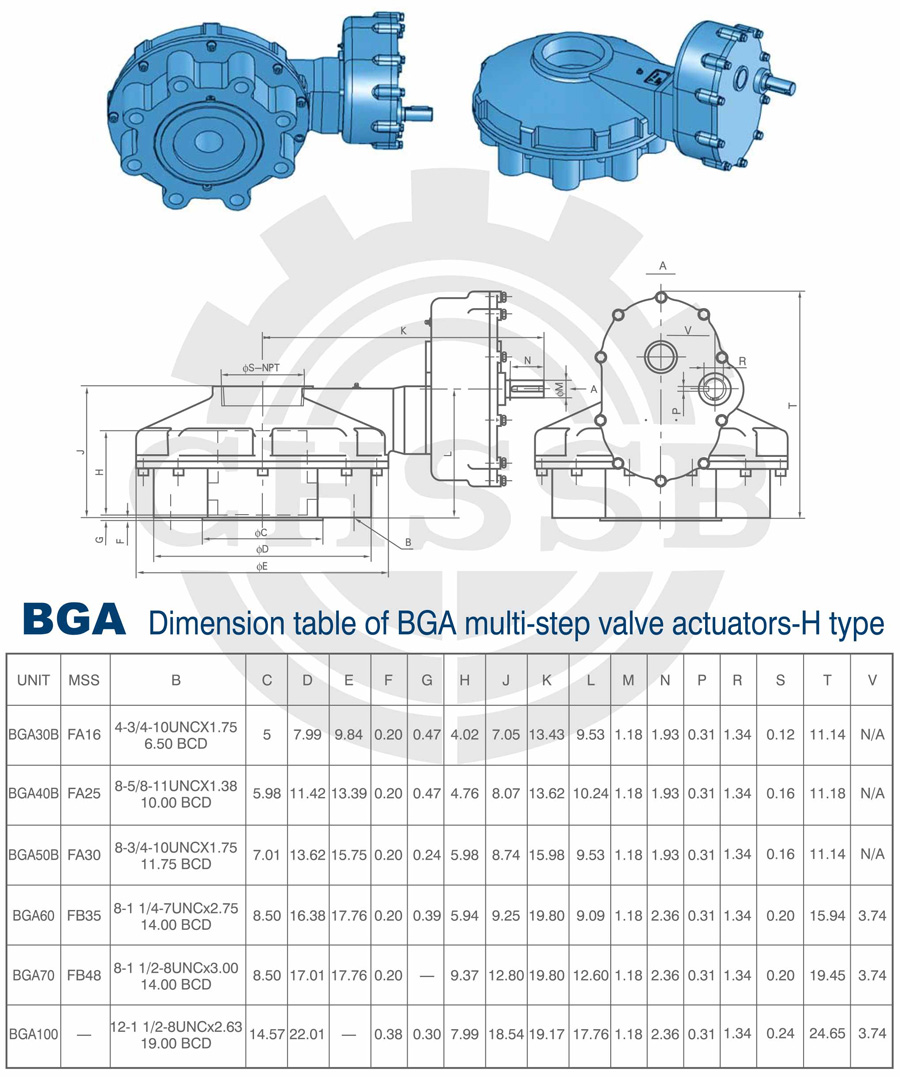

BG Multi-step H Type | BGA30B-BGA100 | |

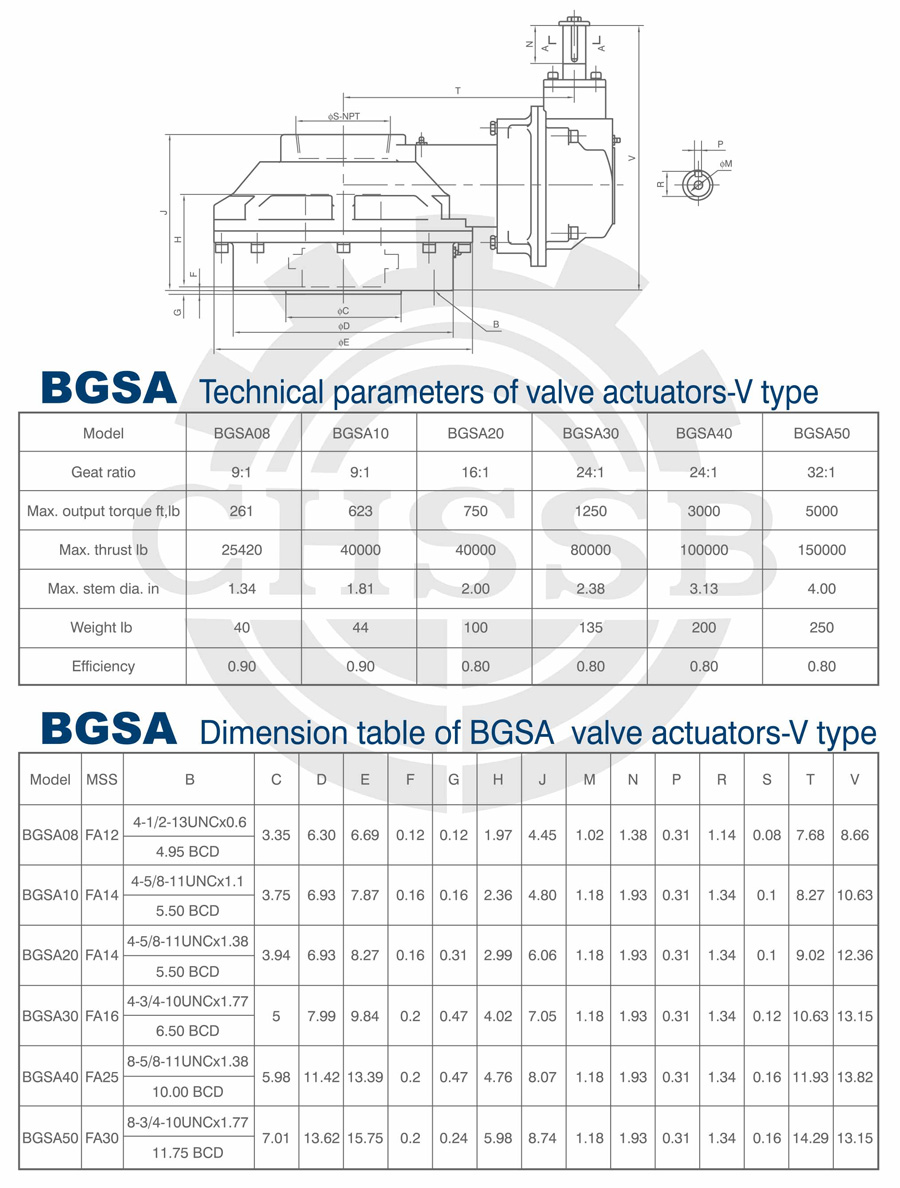

BG One-step V Type | BGSA08-BGSA50 | |
DIN | BG One-step H Type | BGH05-BGH50 |
BG Multi-step H Type | BGH30B-BGH100 | |

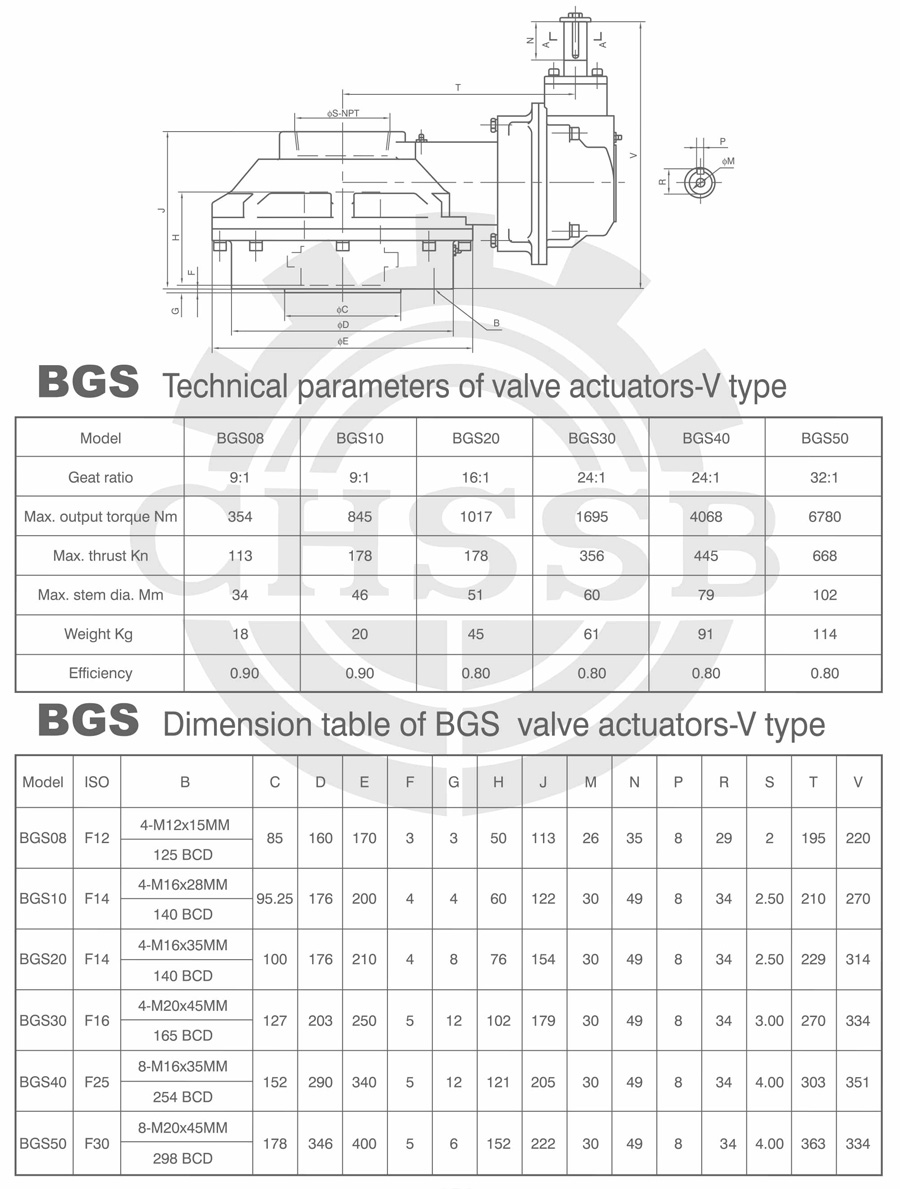

BG One-step V Type | BGV08-BGV50 |
ANSI Standard:
DIN Standard:
