H Type Tightening Flange

Parameters Introduction:

E NSPT-LOCKS include two inner and outer taper rings.The structure is simple and compact. It dose not

need a large installation space, circular without split and is well balance dynamically.

E NSPT-LOCKS transfer high surface pressures onto the shaft by the pressing flange. E NSPT-LOCKS transfers

high surface pressures onto the shaft by the pressing flange. The connection is formed by tightly compressing

the shaft and the taper hole. It is well applicable to the light load and small space installation.

Type F and type H pressing flange may also be chosen according to the different shaft diameters and structures.

Product range:

Standards

Series Type

SizeRange

ANSI/DIN

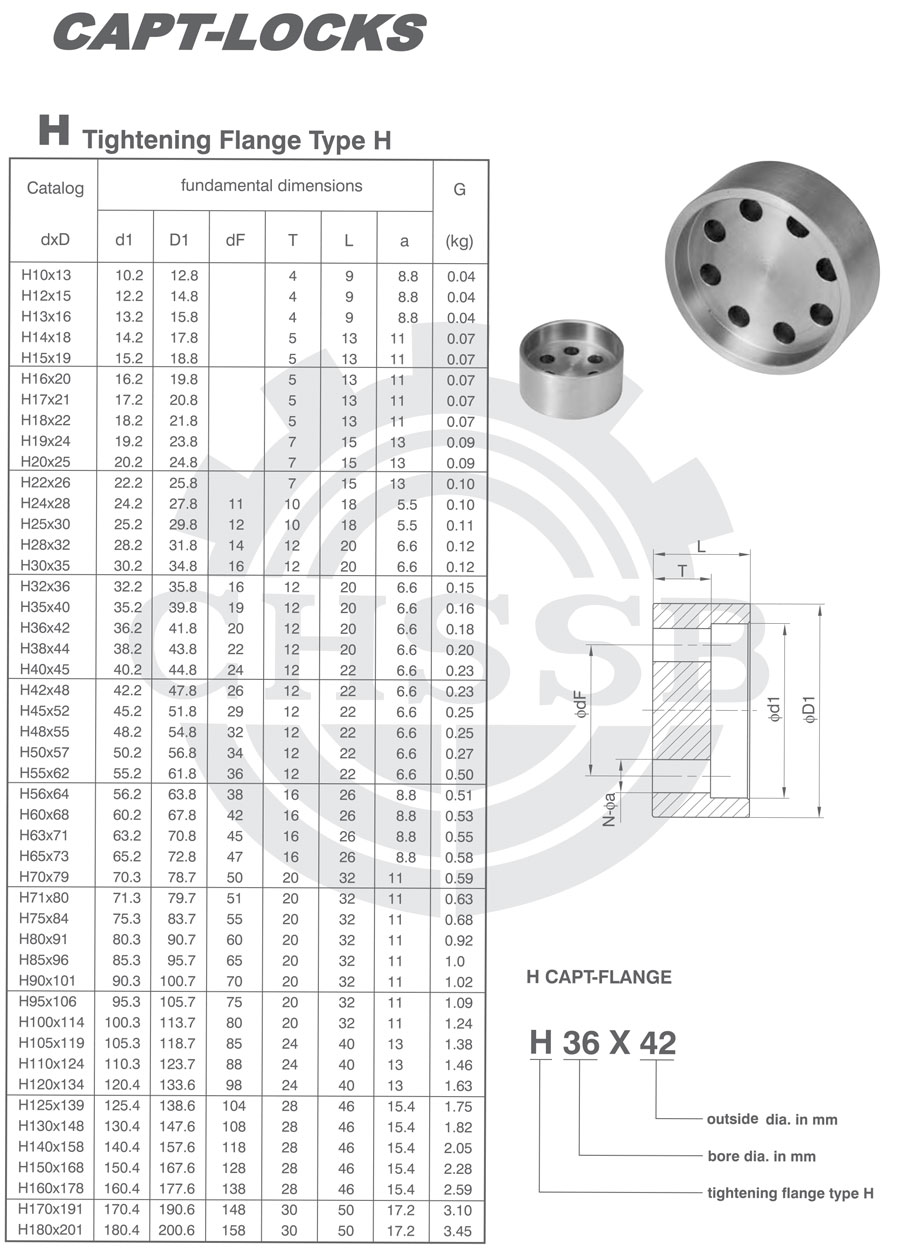

H(Tightening Flange Type H)(Metric)

H10x13至H180x201

ANSI Catalog:


DIN Catalog:
