CWG Series of Worm Operators
CWG Series of Worm Operators
Range of product:
ANSI:(CWGA4-CWGA120)
DIN:(CWG4-CWG120)
Inch size product (Apply to ANSI market)
Metric size product (Apply to DIN market)
●90°-turning manual operating device suitable for connecting with butterfly valve, ball valve and cock valve, etc.
●Permitted output torque range:4000~141600 LBF.IN.
●Handwheel can be equipped from both left and right sides.
●Dimension joining with valves is designed according to standard IS05211/MSS SP-101.
●Loaded with grease inside device body,shell sealed for waterproof protection (grade IP65)， which are suitable for devices used indoor and outdoor.
●The device body and cover are made of ductile iron for high efficiency. Two ends of the worm are equipped with bearings for good mechanical efficiency.
Standards | Series Type | SizeRange |
ANSI | CWGA | CWGA4-CWGA120 |
DIN | CWG | CWG4-CWG120 |

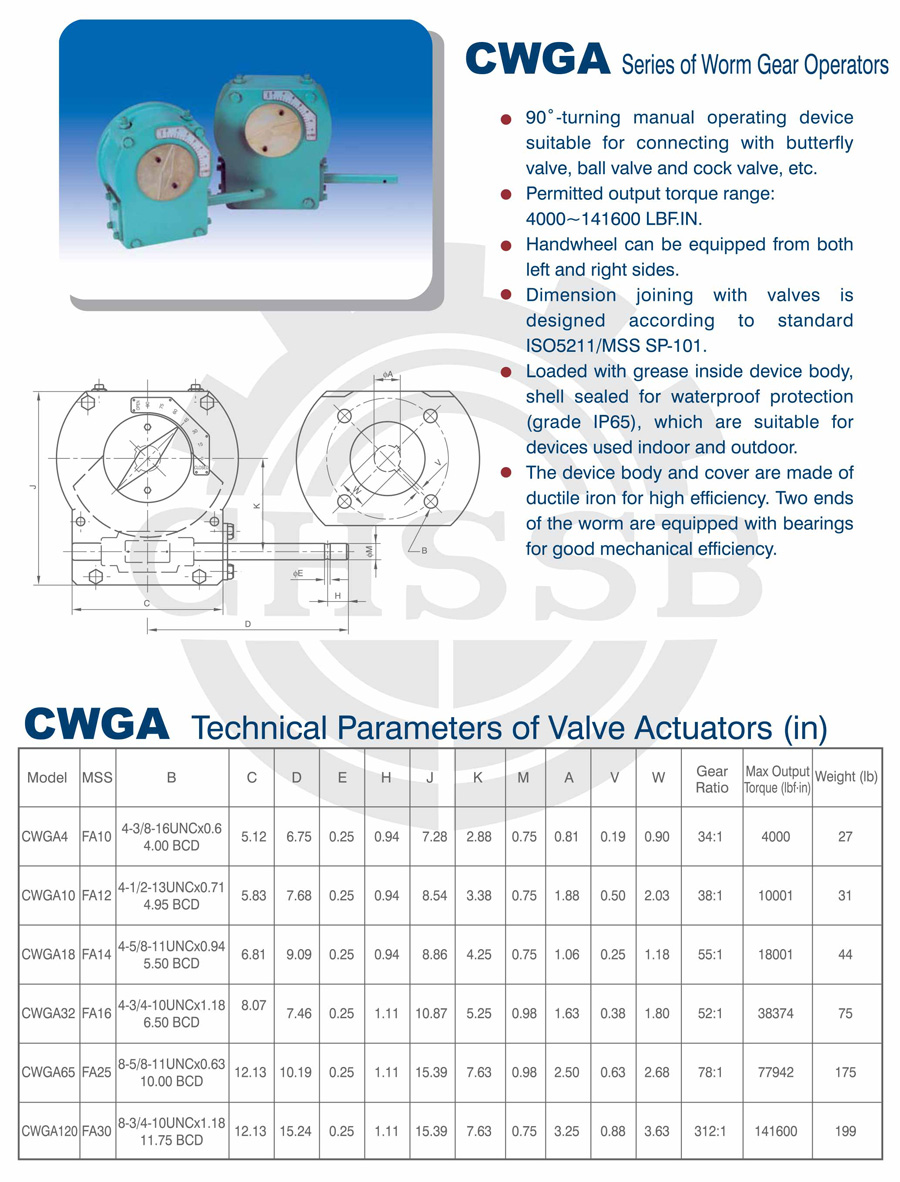

ANSI Standard:

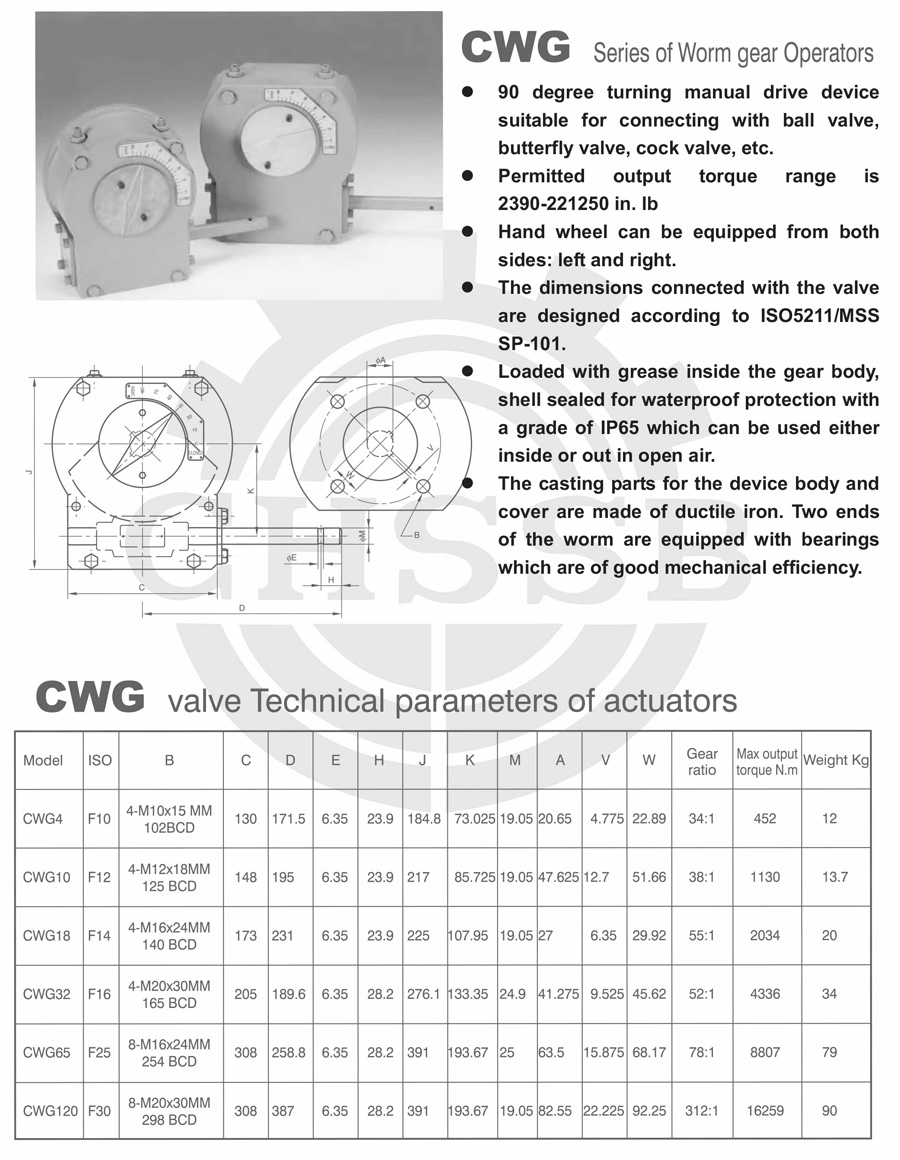

DIN Standard:
